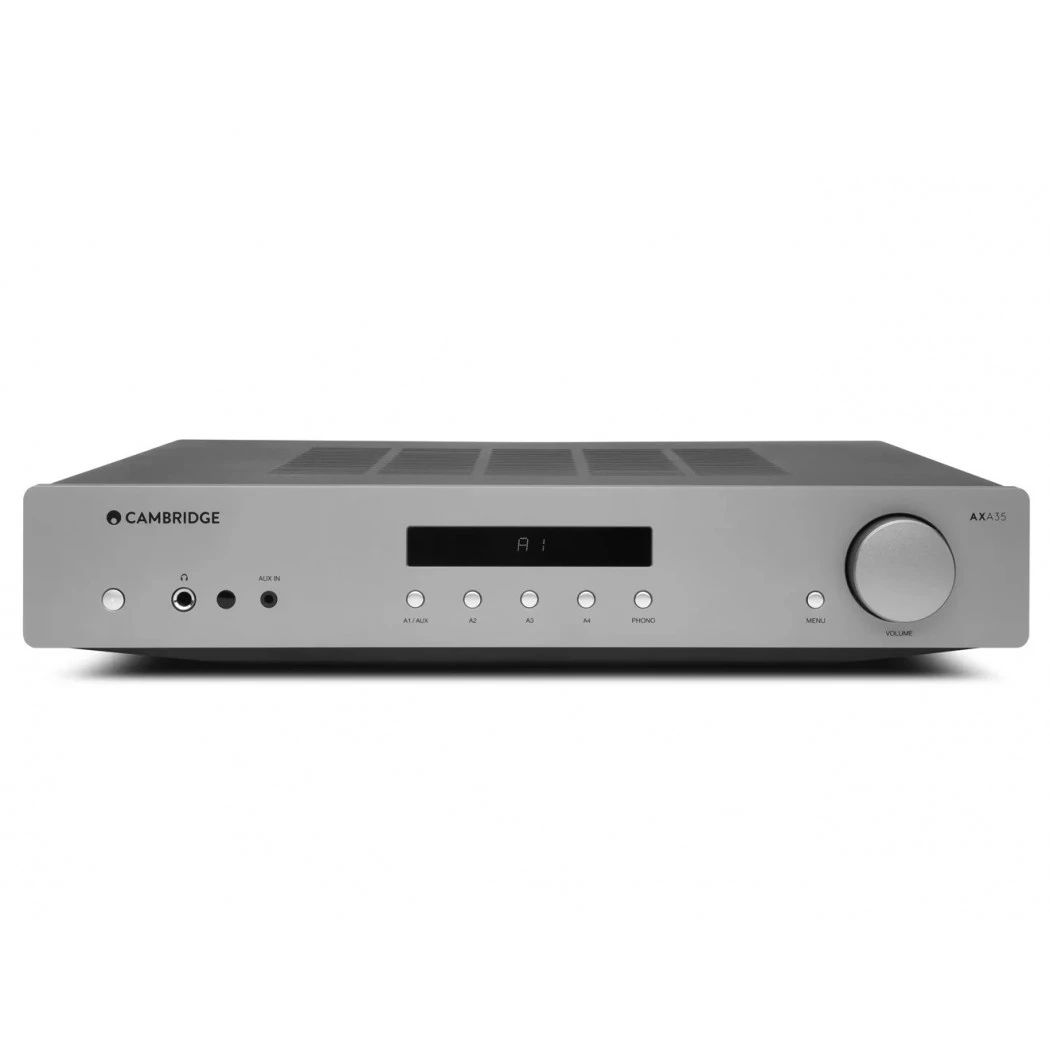

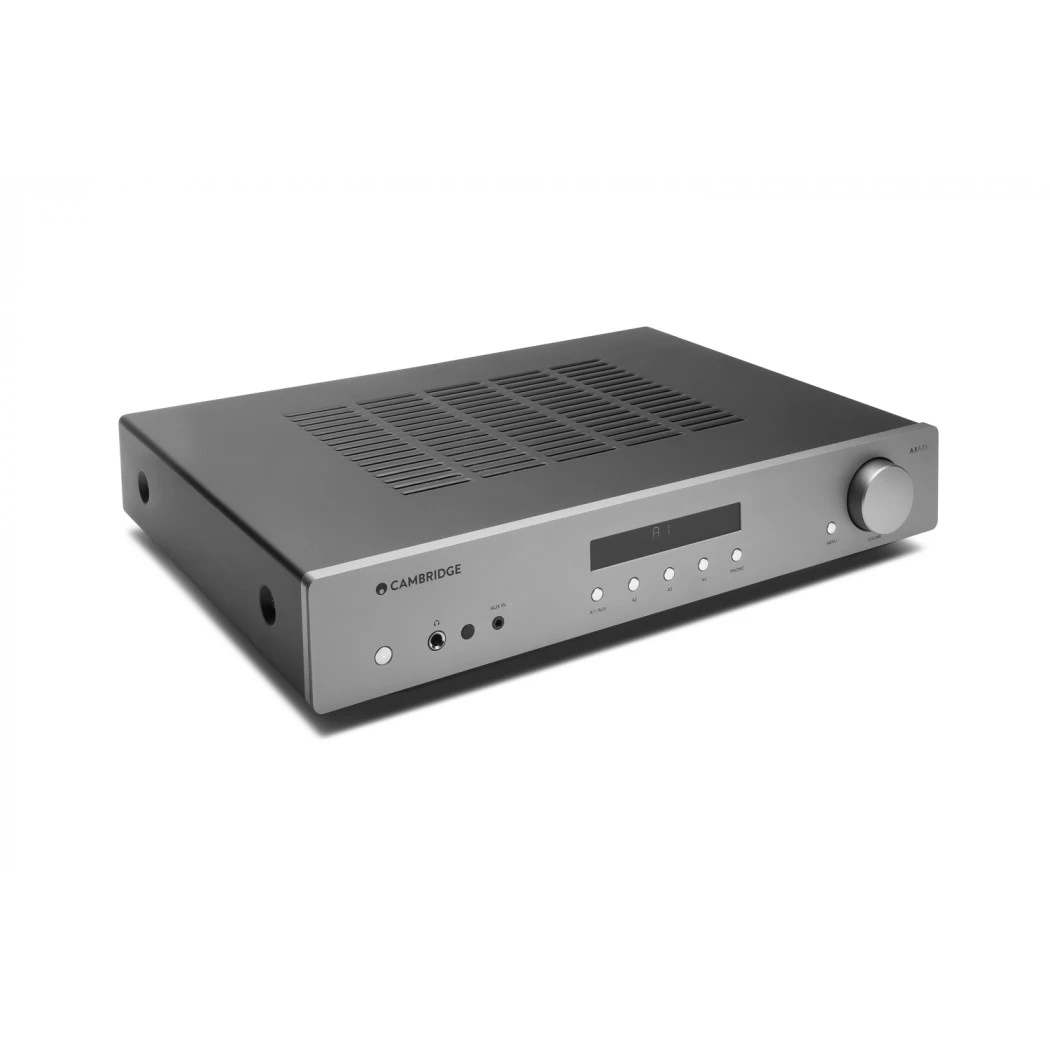

AXA35

Integrated Amplifier with Built-In Phono Stage

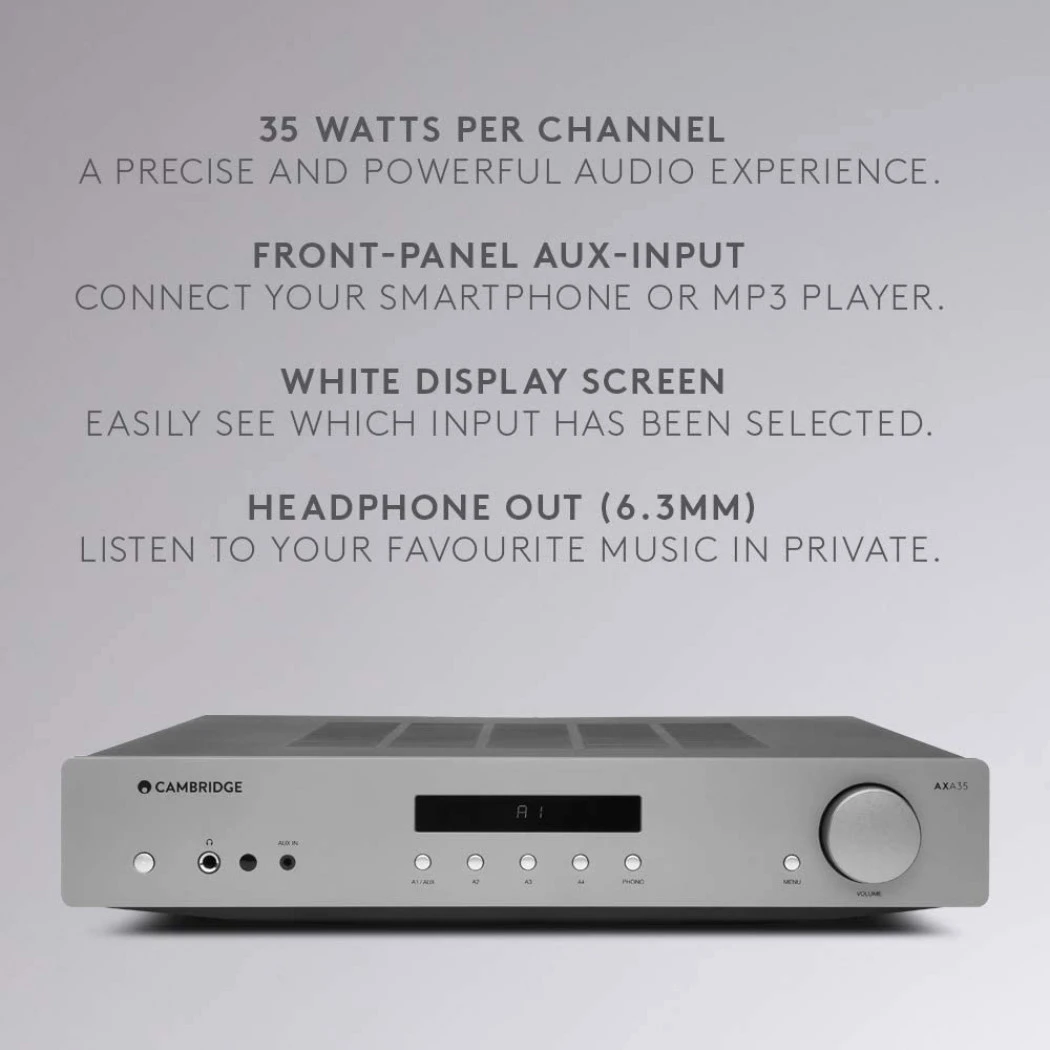

The AXA35 boasts 35 watts of power per channel, an integrated moving magnet phono stage for turntable enthusiasts, a white display screen, and a ¼ inch headphone socket for private listening sessions.

POWER OUTPUT

35 Watts (into 8 Ohms)

THD (UNWEIGHTED)

<0.01% @ 1kHz, 80% of rated power <0.15% 20Hz – 20kHz, 80% of rated power

FREQUENCY RESPONSE (-3DB)

5Hz – 50kHz

S/N RATIO (REF 1W)

>82dB (unweighted)

INPUT IMPEDANCES

47k ohms

POWER AMP DAMPING FACTOR

> 50

MAX. POWER CONSUMPTION

260W

BASS/TREBLE CONTROLS

Shelving, ultimate boost/cut +/- 10dB @ 100Hz and 10kHz

STANDBY POWER CONSUMPTION

<0.5W

INPUTS

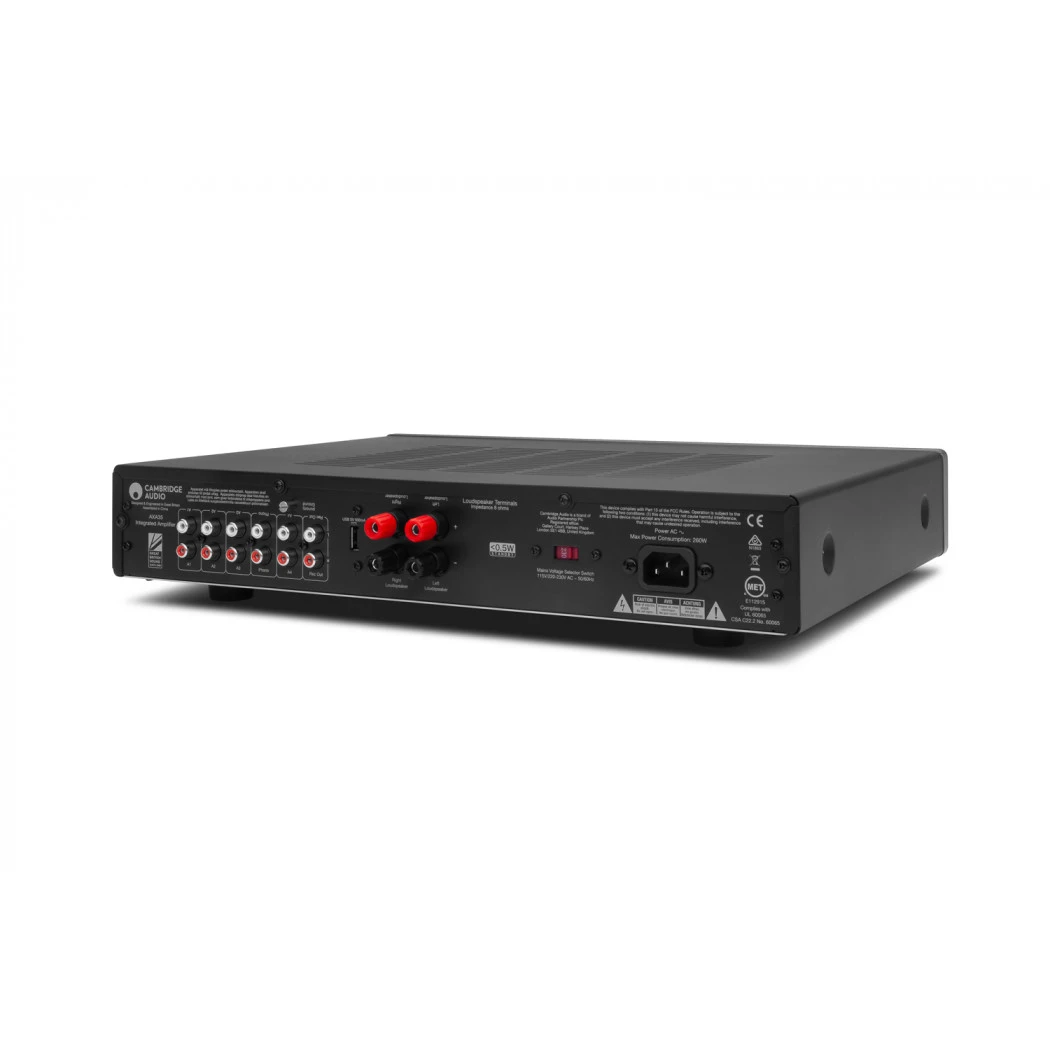

4x RCA, 1x Phono, 1 x 3.5mm Aux input (front panel)

OUTPUTS

Speakers, Rec Out, USB 5V power

DIMENSIONS (HXWXD)

83 x 430 x 335mm (3.3 x 16.9 x 13.2”)

WEIGHT

5.6kg (12.3lbs)

IN THE BOX

AXA35 Integrated Amplifier, Power Cable, Remote Control, 2 x AAA Batteries
