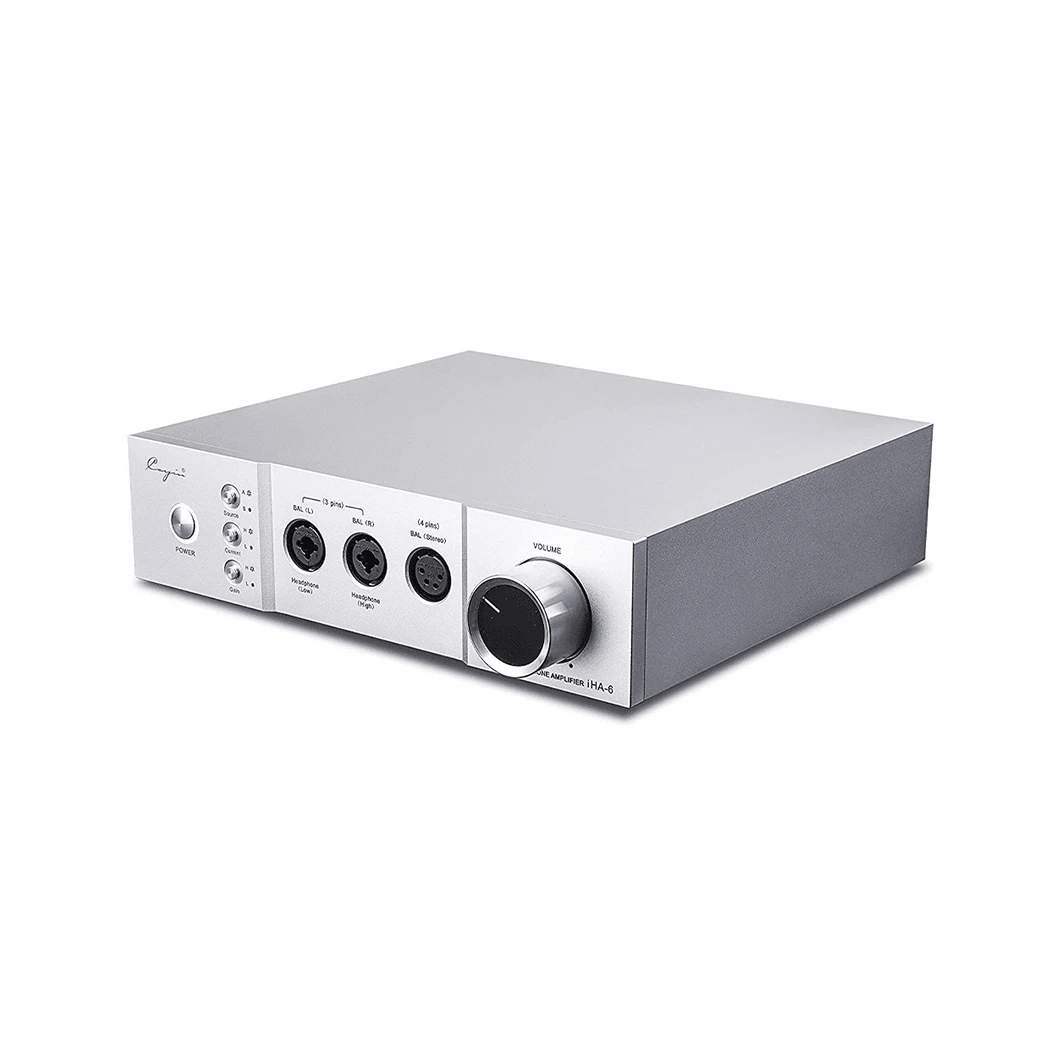

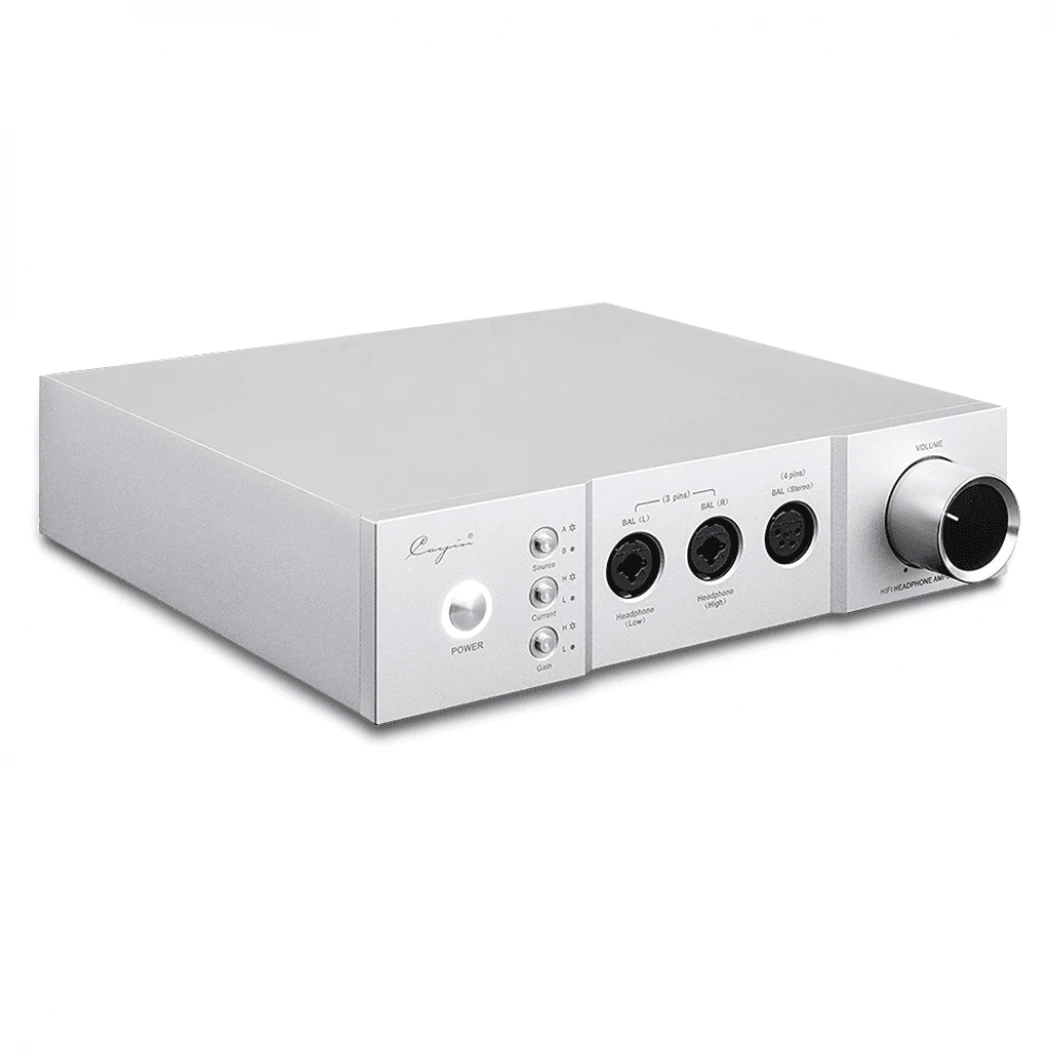

Cayin IHA-6 Headphone Amplifier

The Cayin iHA-6 is a fully balanced, solid state headphone amplifier designed to achieve a high level of detail and integrity for listeners.

iHA-6 delivers great soundstage, beautiful layering, and enough power and authority for almost anything you’ll throw at it. It features two sets of inputs and four sets of outputs for flexibility with your headphone collection.

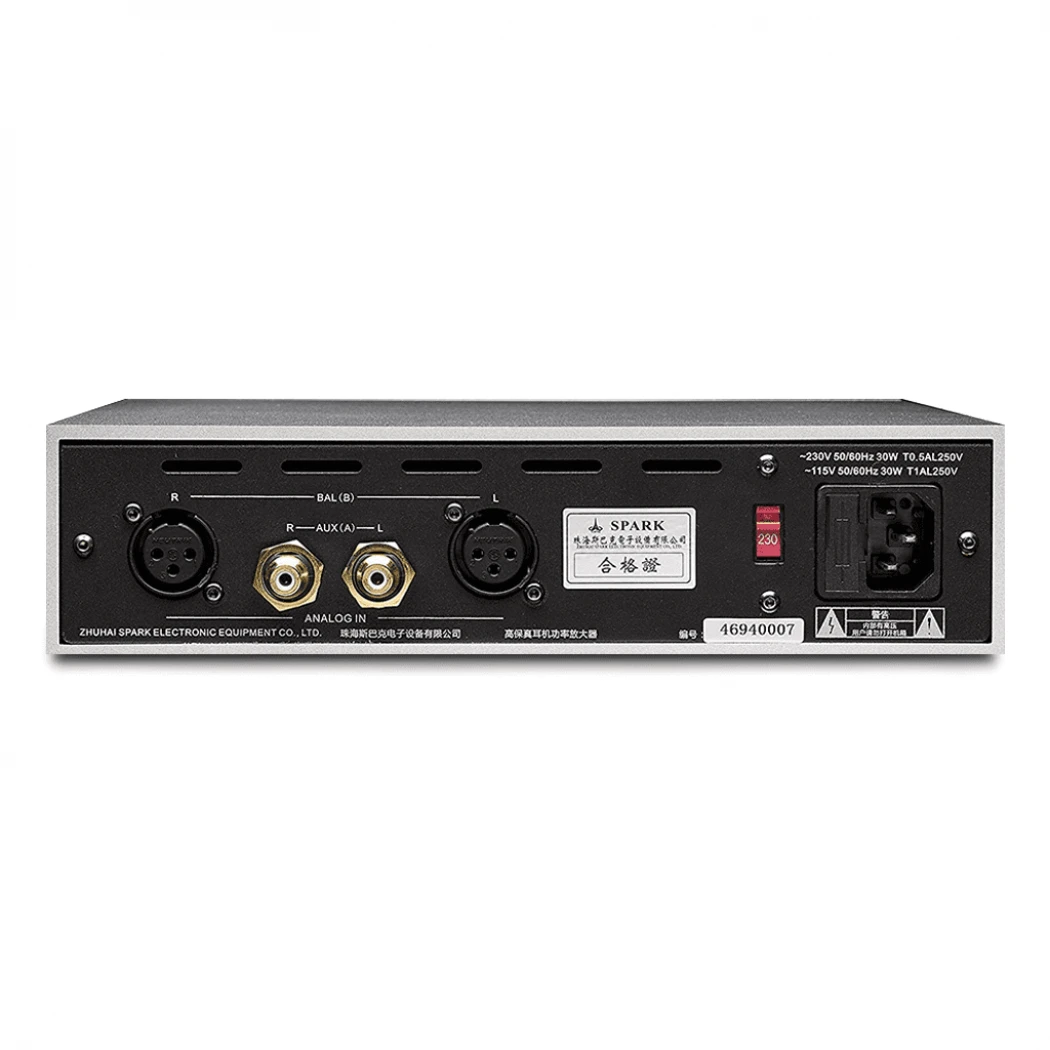

These interfaces include an XLR balanced input, RCA stereo input, two sets of balanced headphone outputs (dual 3-pin XLR and 4-pin XLR), plus two 6.35mm outputs for headphones with different impedance and sensitivity.

Current and Gain control settings allow compatibility with both the low- and high-impedance headphones in your collection.

The quadruple amplifier circuit has discrete components and a fully-balanced design. There is independent power supplied to left and right channels, reducing power interference between them.

• 2x 6.35mm TRS outputs, one optimized for low impedance and the other for high impedance headphones
• 1x 3 pin XLR (balanced) output

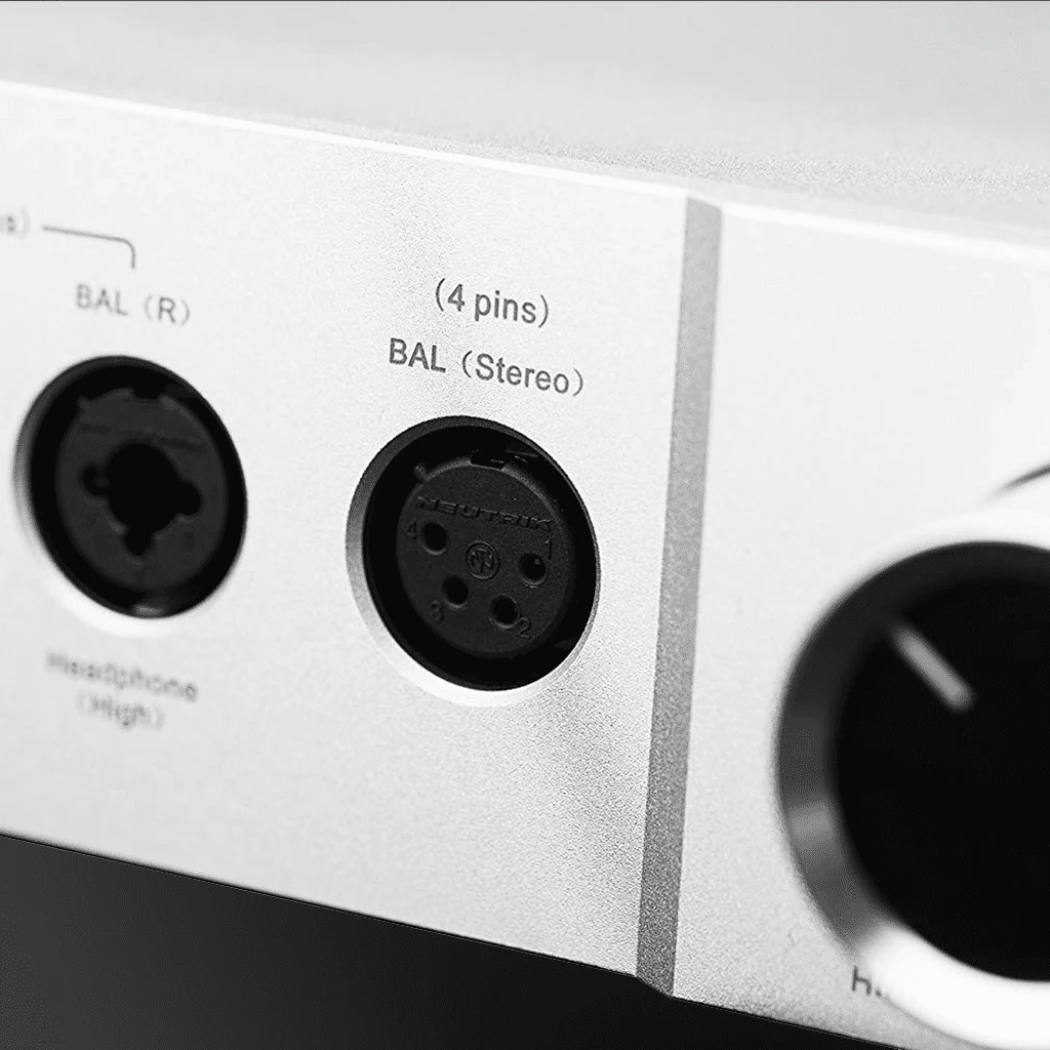

• 1x 4 pin XLR (balanced) output
• 1x RCA stereo input

• 1x  3 pin XLR (balanced) input
• Push-pull amplification design with high power, MOSFET at power amplification stage, offering excellent dynamic performance
• Japanese-made ALPS 4 channel rotary potentiometer for volume control
• High capacitance filter capacitors

• In-house designed premium grade toroidal transformer, with low magnetic leakage and high power efficiency
• Solid chassis with aluminum alloy and sand blast finishing to minimize exterior interference


Dimensions

240mm x 252mm x 69mm (WxDxH)

Weight

3.8 kg | 8.4 lbs

Frequency Response

10Hz~80kHz (-0.5dB)

Sensitivity

200mV～440mV

SNR

Single-Ended Headphone: ≥105dB  (A weighted)

Balanced Headphone: ≥110dB  (A weighted)

THD+N

≤0.02%  (1kHz,RL=32Ω)

Power Rating

Single-Ended:

1100mW+1100mW(High Current，RMS,RL=32Ω)

2200mW+2200mW(Low Current，RMS,RL=32Ω)

Balanced:

5000mW+5000mW(High Current，RMS,RL=32Ω)

7000mW+7000mW(Low Current，RMS,RL=32Ω)

Warranty

2 year parts and labour
