Chord Hugo 2 Mobile DAC/Headphone Amplifier

Introducing the next generation of the award-winning Hugo portable DAC and headphone amp. The Hugo 2 is a powerful DAC and headphone amp that builds on the ground-breaking original. Designed for both home and mobile use, Hugo 2 transforms headphones and audio systems’ sound quality with cutting-edge proprietary DAC technology.

The device offers 4 digital inputs (optical, coaxial and HD USB) plus extended-range Bluetooth, with high-resolution file playback up to 768kHz and up to DSD512 (Octa DSD), via its HD USB input. Analogue outputs include 2x RCA, plus 3.5mm and 6.35mm headphone outputs.

A 4-function switch filter offers a useful degree of user-selectable frequency-shaping, bringing warm and soft or transparent and incisive presentations, giving additional flexibility and user control. For headphone-listening, Hugo 2 retains the popular digital crossfeed function of the original and offers three operation modes. The system duplicates the effect of listening to speakers and is based on advanced binaural audio research.

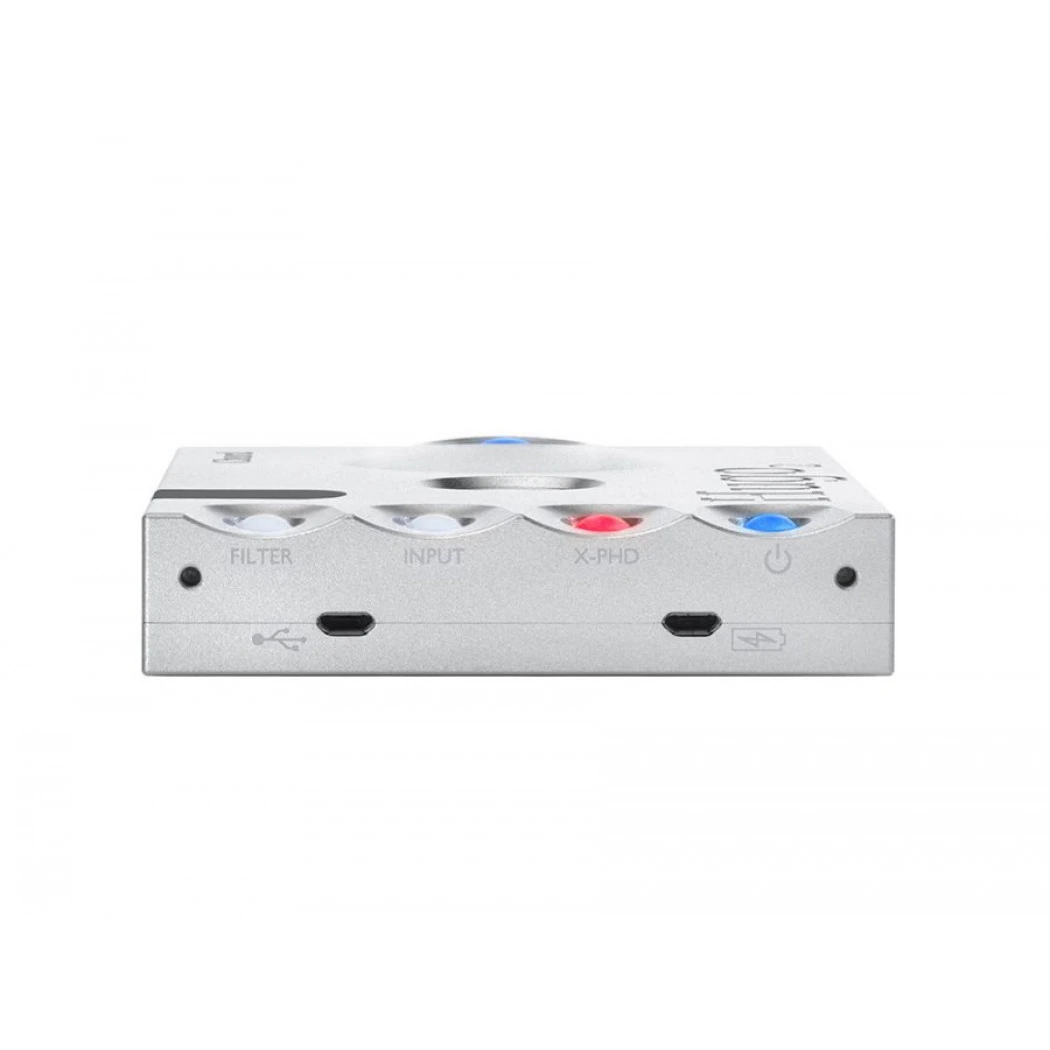

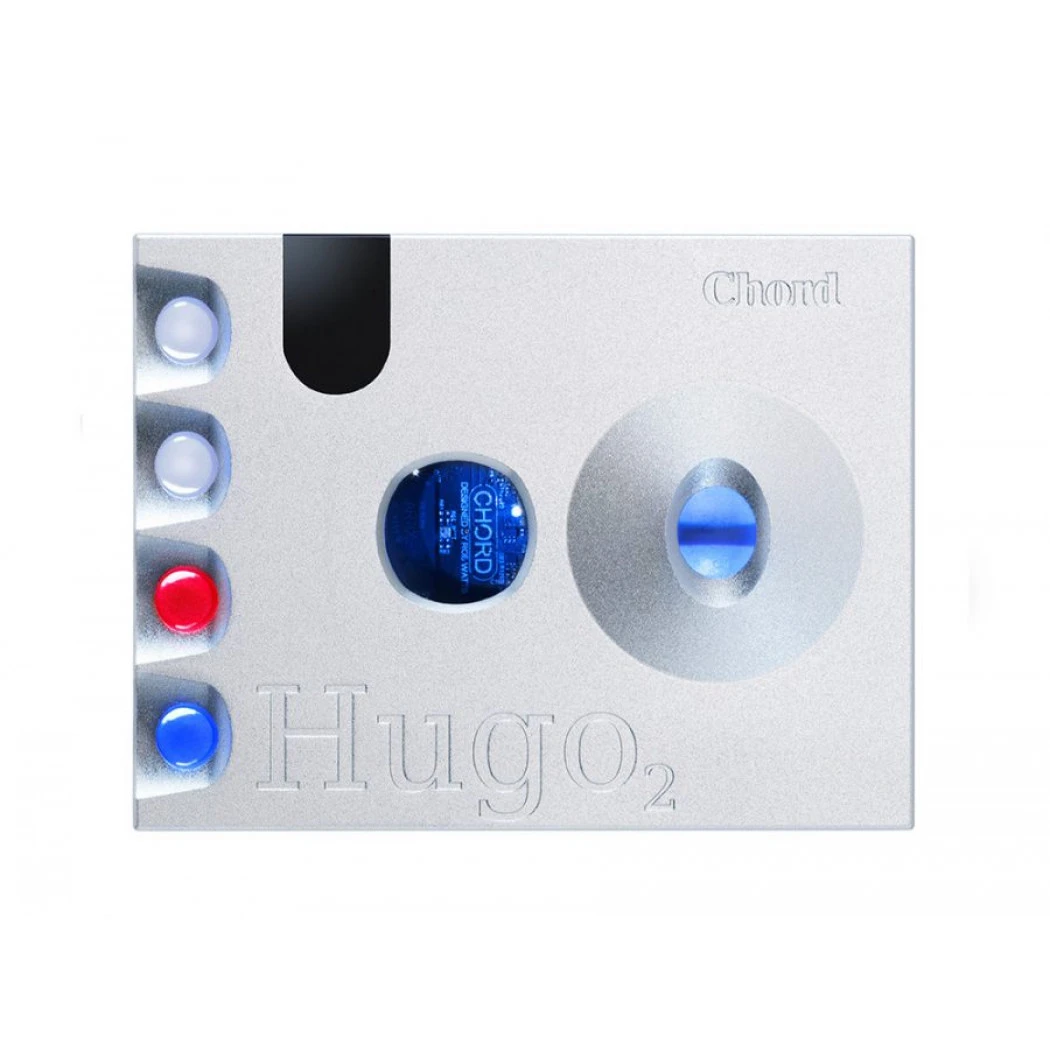

Hugo 2 features 4 spherical control buttons, which illuminate with colour-coding information and control power, input, filtering, plus the unit’s crossfeed functions.

Battery playing time is around 7 hours and two modes of automatic charging are included using the dedicated Micro USB charging port; an indicator shows charging and battery-charge status.

HUGO 2 – SPECIFICATIONS:

Materials: Clamshell precision machined aluminium casing with polycarbonate  buttons, acrylic signal window, and glass viewing portal.

Battery: 2x Rechargeable custom Enix Energies 3.7v 9.6Wh Li-ion (lithium-ion (2600mAh) batteries*

Tap length filter: 49,152 – 10 element Pulse Array design

Play time: 8 hrs (Avg.time)

Charging: Nominal six (6) hours via Micro USB at 1.8amps (fast charge) – Nominal eight (8) hours at 1amp (slow charge)

Connectivity (input): Micro USB (White): 44.1kHz to 768kHz – 16bit to 32bit

Coax via 3.5mm jack (Red): 44.1kHz to 384kHz – 16bit to 32bit

Coax via (same) 3.5mm jack (Dual data mode: Yellow): 44.1kHz to 768kHz – 16bit to 32bit

Optical (Green): 44.1kHz to 96kHz – 16bit to 24bit

Connectivity (input wireless): Bluetooth (Apt X) (Blue): 44.1kHz to 48kHz – 16bit

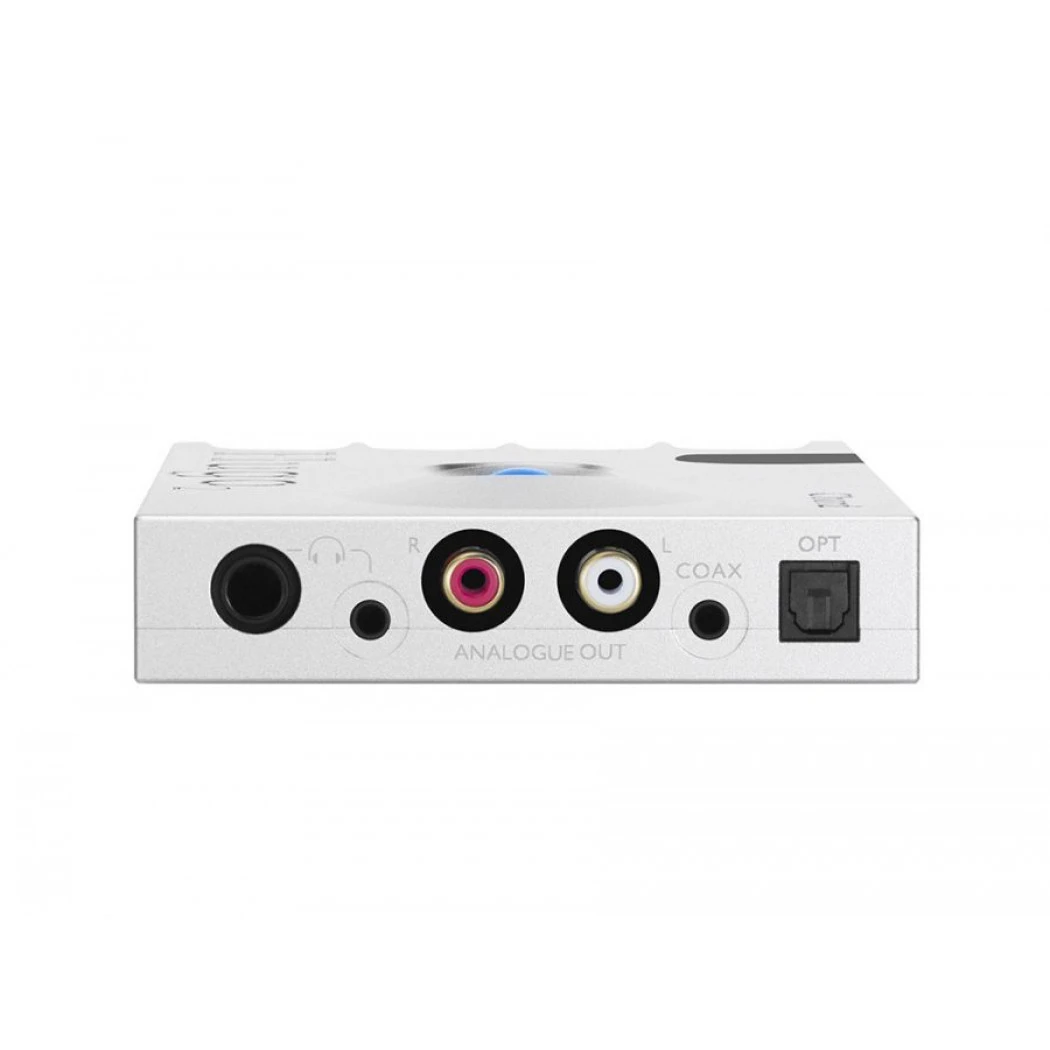

Connectivity (output): 1x ¼” jack headphone output

1x 3.5mm jack headphone output

1x stereo (L & R) RCA output

PCM support: 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz, 358.8kHz, 384kHz, 717.6kHz, and 768kHz. 16 – 32bit

DSD support: Native playback supported. DSD64 (Single) to DSD512 (Octa-DSD)

Volume control: Digital, activated in 1dB increments. Last known state saved upon shutdown, with exception of line-level mode

Line-level mode: Activated via dual press of middle ‘Source’ and ‘Crossfeed’ buttons. Line level = 3v via all outputs. Reset by power cycle

Power saving mode: Auto-shutdown after ten minutes of input inactivity

Driver support: Driverless with Mac OS X and Linux, driver required for Windows OS



User Configurable Options:

Filters (Digital):

Incisive neutral (Ultimate reference) (White)

Incisive neutral HF roll-off (High Frequency roll off) (Green)

Warm (‘Smooth’) (Orange)

Warmer HF roll-off (High Frequency roll off) (Red)



Technical specifications:

 Chipset: Chord Electronics custom coded Xilinx Artix 7 (XC7A15T) FPGA

Tap-length: 49,152

Pulse array: 10 element pulse array design

Frequency response: 20Hz – 20kHz +/- 0.2dB

Output stage: Class A

Output impedance: 0.025Ω

THD: <0.0001% 1kHz 3v RMS 300Ω

THD and noise at 3v RMS: 120dB at 1kHz 300ohms ‘A’ wighted (reference 5.3v)

Noise 2.6 uV ‘A’ weighted: No measurable noise floor modulation

Signal to noise ratio: 126dB ‘A’ Weighted

Channel separation: 135dB at 1kHz 300Ω

Power output @ 1kHz 1% THD: 94mW 300Ω

740mW 32Ω

1050mW 8Ω

Weight: 390g

Dimensions: 2.1cm (H) 10cm (W) 13cm (D)
