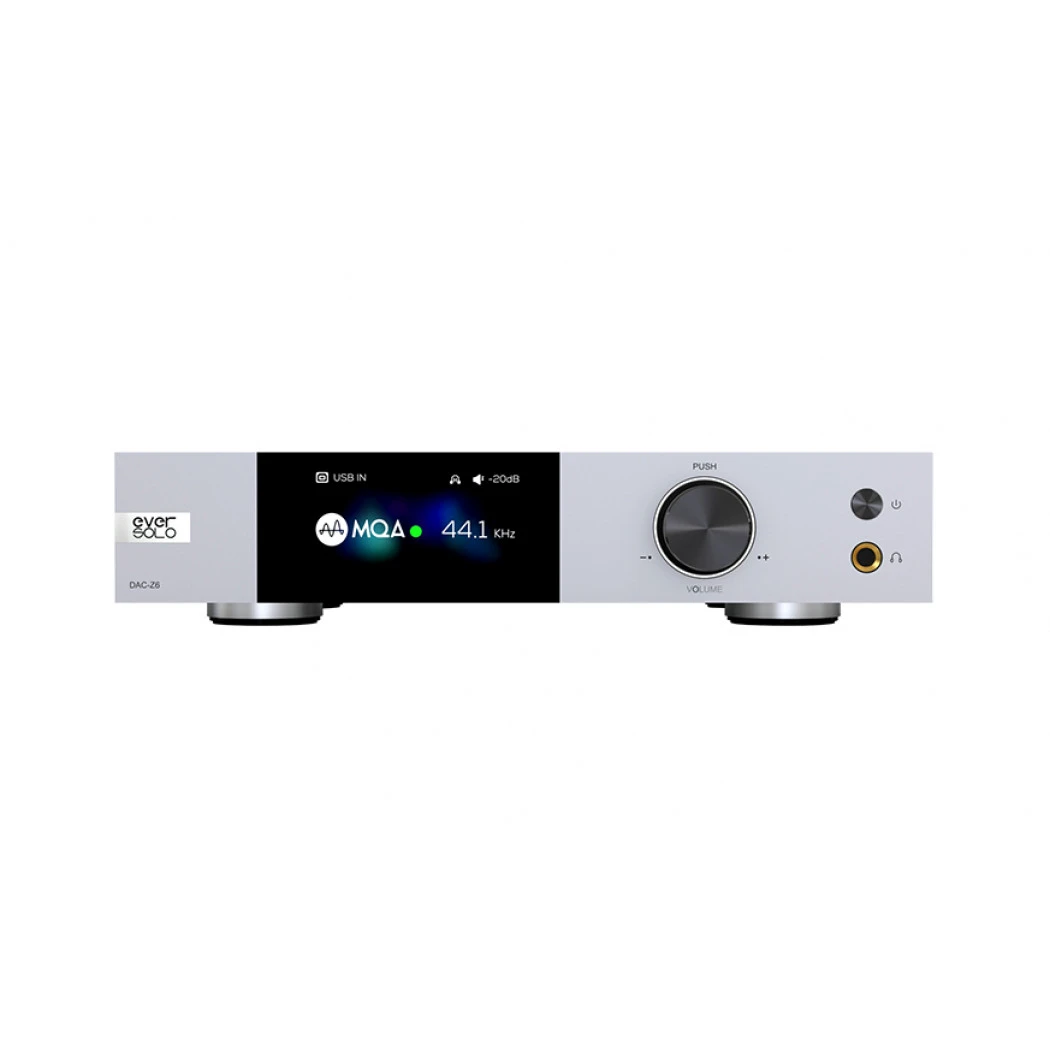

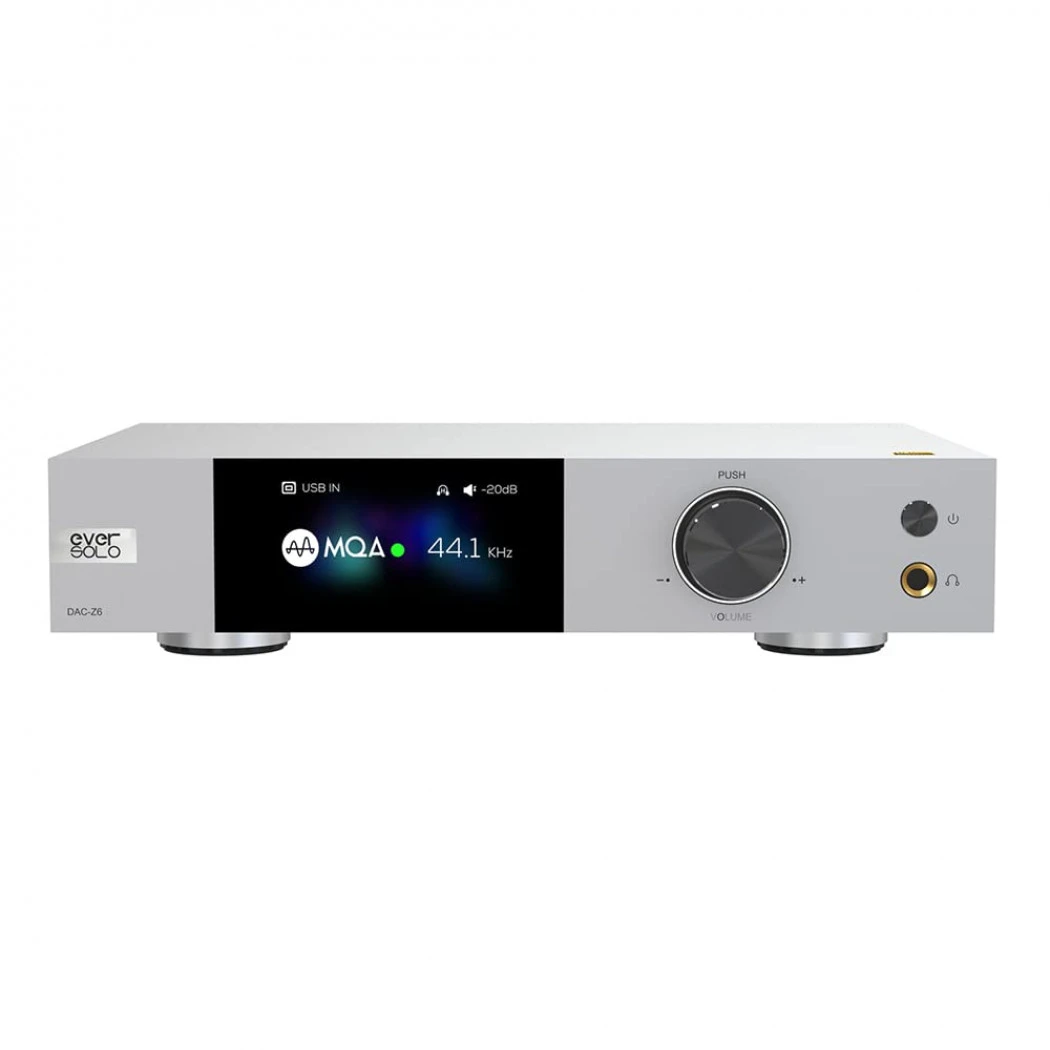

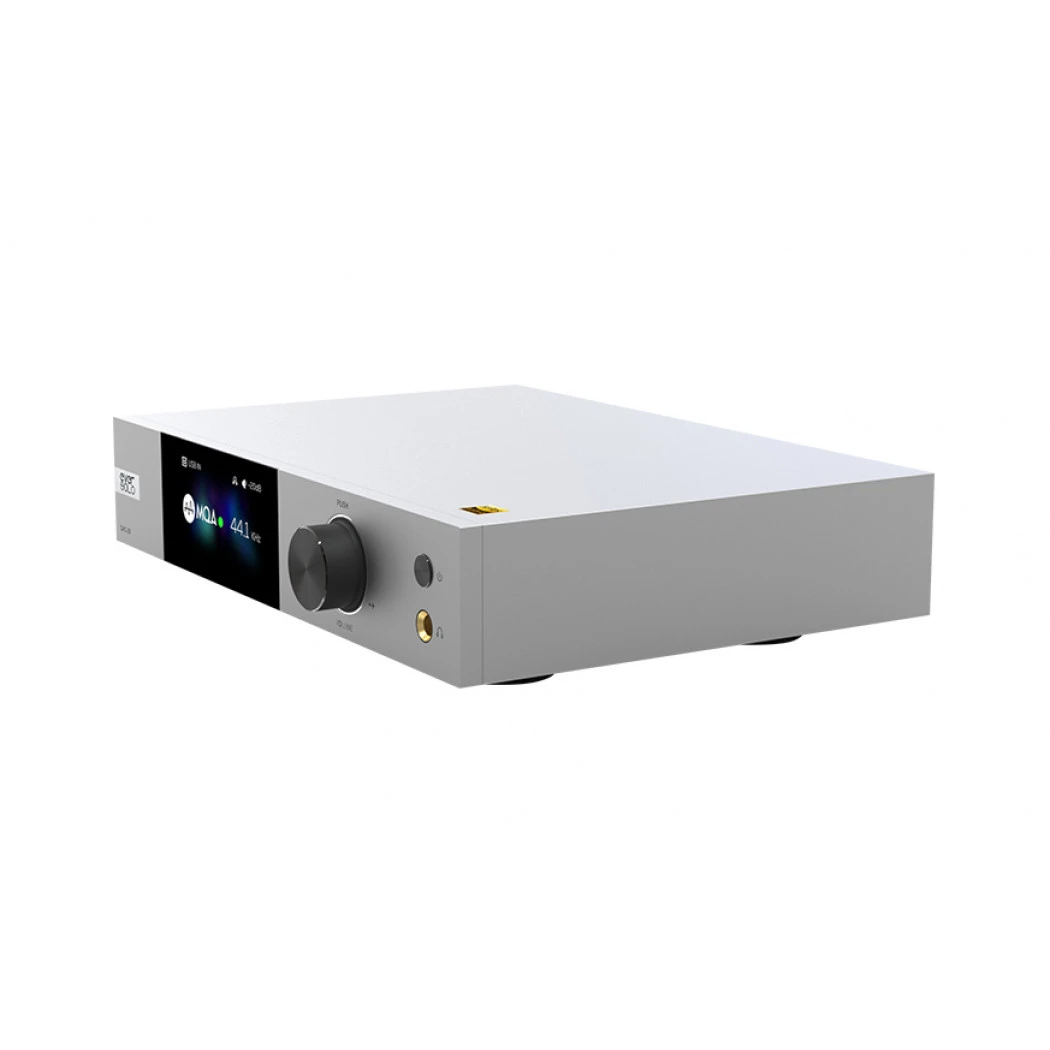

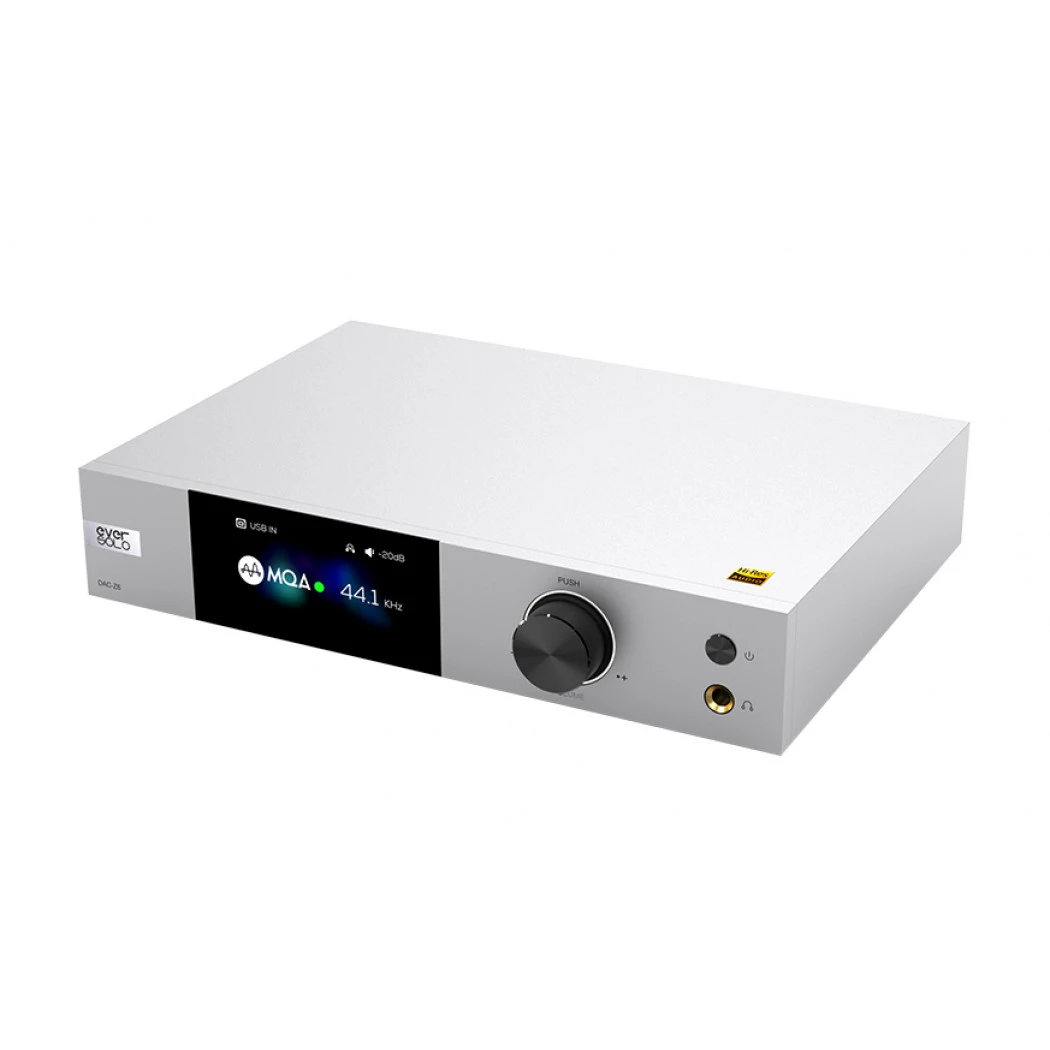

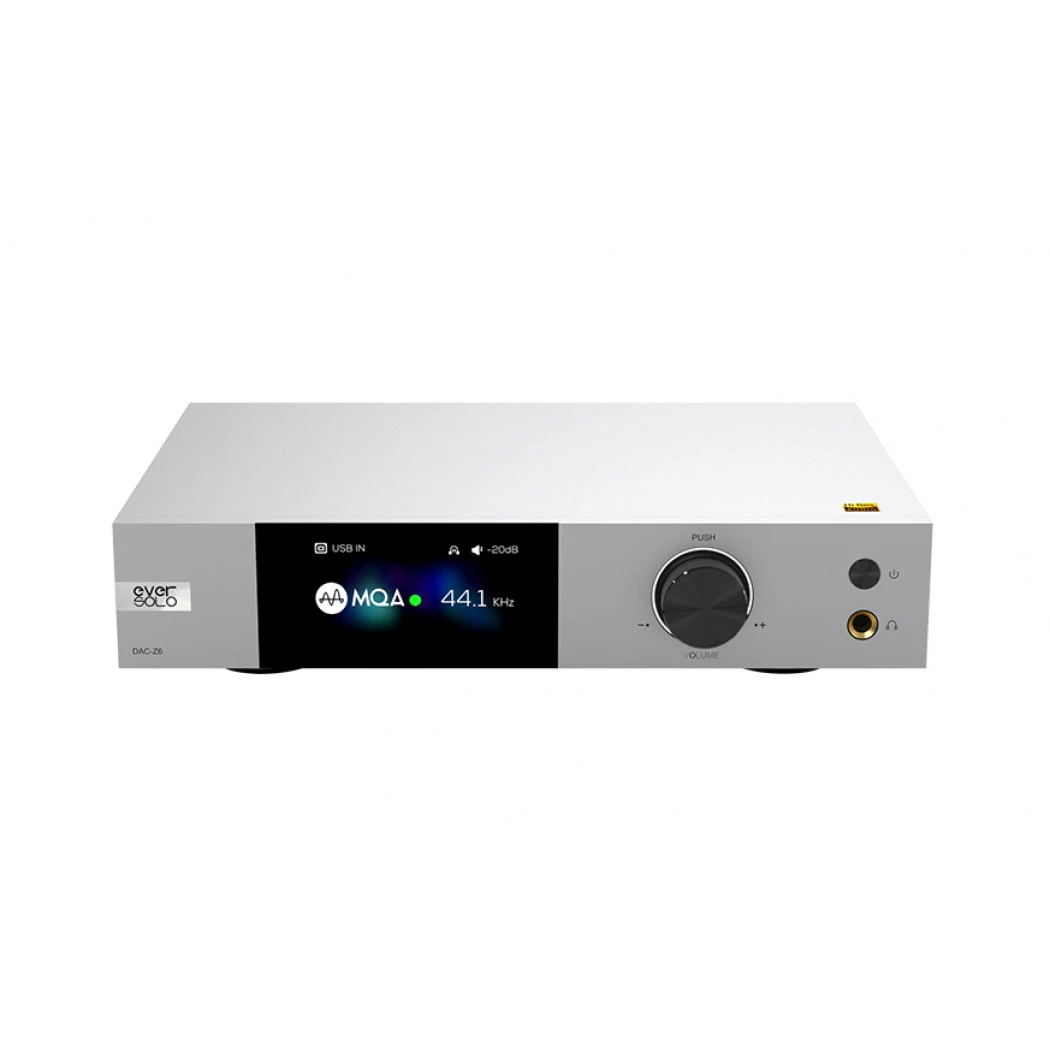

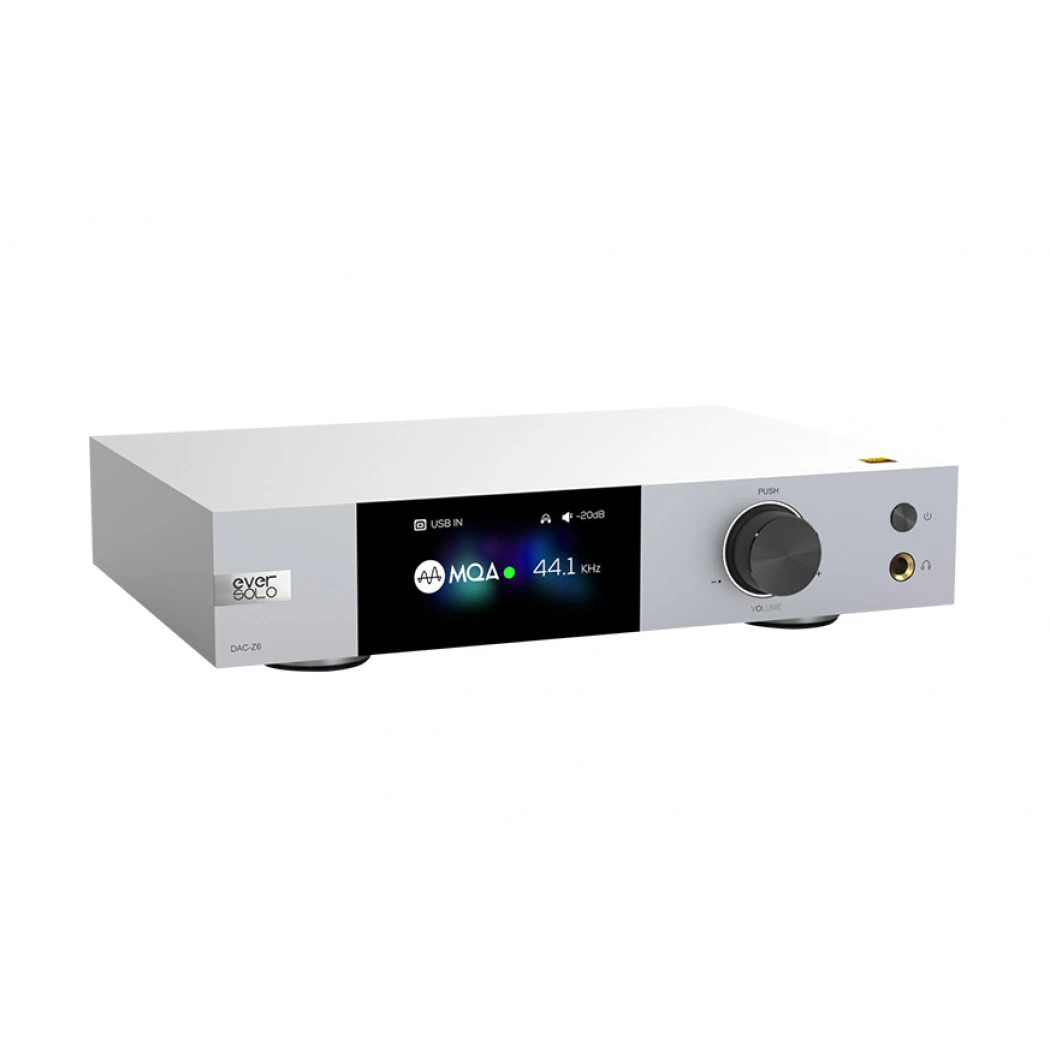

EverSolo DAC-Z6

DAC-Z6 is a compact digital to analog converter with excellent workmanship and great performance.

Enjoy a high level of sound quality, great preamp performance and a convenient built-in headphone amplifier. Featuring the XMOS 316 processor and dual ES9068 DAC chips, it supports up to DSD512, PCM 768Khz @ 32Bit, and MQA full decoding.

Convenient control options and a rich set of inputs make the device a worthy pairing with high end headphones and stereo speakers.

EverSolo DAC-Z6 Digital To Analog Converter With Headphone Amplifier -Trendy Electronic Audio Supplies Store DAC Z6 Canada

Dual ESS Sabre ES9068 chips with independent decoding for dual channels.
3rd generation XMOS XU316 processor with higher performance and faster speed.
High precision, low jitter dual clock oscillators synchronous processing.
Up to DSD512 Native, PCM768KHz@32Bit decoding.
Optical, Coaxial and USB inputs support MQA full decoding and rendering.
Qualcomm QCC5125 Bluetooth 5.0 module supports aptX HD/LDAC protocol.
Fully balanced audio architecture, differential amplifier circuit, and professional calibration.
Performance headphone amp output designed for most 16-300 ohm headphones.
3-inch LCD screen with appealing VU meter options.
Low ripple power supply to ensure a purer power source.
Includes remote, or use the EverSolo mobile app for control.

EverSolo DAC-Z6 Digital To Analog Converter With Headphone Amplifier -Trendy Electronic Audio Supplies Store 20220927144438 28919

Dual ES9068 DACs

DAC-Z6 features two ES9068 DAC chips, with one DAC chip per channel for independent stereo D/A conversion. The design avoids interference between channels effectively, reduces the noise floor to 6dB, and improves signal-to-noise ratio and dynamic range. DSD512, PCM768 @32bit, and MQA hardware decoding are supported.

Ideal Implementation

Just as — if not more — important as the DAC chips is how they’ve been implemented in a system. Thanks to EverSolo development engineers’ rich experience in analog circuit design, DAC-Z6 has a professional-grade calibration and circuit design. The total harmonic distortion ratio which has been measured is -120dB (0.00009%), while signal-to-noise ratio and dynamic range are 125dB. These indicators are a solid foundation for sound quality.

Digital Filters

Choose from a digital filter modes in the DAC setting menu to meet different preferences. DAC-Z6 features 3 filters.

High Precision Clock Oscillators

Two low jitter clock oscillators (45.1584MHz and 49.152MHz) are integrated in DAC-Z6, which correspond to 44.1 KHz and 48KHz multiplied sampling management. The result is more accurate audio decoding.

XMOS 316 Processor for Format Support

The 3rd generation XMOS 316 has faster speed and better USB bandwidth than previous processors, which ensures lossless transmission for high-definition audio data. The USB output supports DSD512 Native, PCM768@32bit, and MQA full decoding. Optical and Coaxial outputs support DSD64 (DoP) and PCM192@24Bit.

MQA Full Decoding

DAC-Z6 includes MQA (Master Quality Authenticated) technology through USB, Optical, and Coaxial, which enables you to play back MQA audio files and streams, delivering the sound of the original master recording.

Differential Amplifier Circuit and Balanced Preamp

The analog audio circuit is a fully balanced design. The XLR, RCA, and headphone outputs are all processed by a balanced differential amplifier circuit. Unwanted noise has been eliminated by resolving the crosstalk of the shared loop, also improving channel separation. The high-fidelity preamp circuit supports refined and precise volume adjustment, without the need to connect with an additional preamp.

Low Ripple Power Module

A low-noise regulated power supply module and dedicated ultra low-noise audio filter capacitor are tailored for DAC-Z6. It powers the audio circuit and ensures clearer sound, with low ripple and less interference.

Wide Variety of Inputs

DAC-Z6 has a rich selection of ports for digital audio input, including Coaxial, Optical, asynchronous USB-B, and USB-C. The Bluetooth audio input option can also be used to wirelessly connect with sources.

Qualcomm QCC5125 Bluetooth Module

In addition to wired inputs, DAC-Z6 also features a built-in Bluetooth audio receiver in the form of the Qualcomm QCC5125 module. Thanks to support for the full suite of SBC, AAC, aptX, aptX LL, aptX HD, and LDAC codecs, you’ll know you’re getting the best possible Bluetooth quality when you pair your mobile phone, tablet, or computer.

Separate RCA and XLR Output

In order to reduce the possible signal interference of the RCA and XLR outputs operating simultaneously, DAC-Z8 can control its output separately to achieve higher audio performance. If desired, through the menu system, the RCA and XLR outputs can also be manually enabled for simultaneous output.

Headphone Amplifier

The headphone amp circuit in DAC-Z6 has great sound; the focus was prioritizing quality of output over sheer power. This performance headphone amplifier drives a majority of popular HiFi headphones with both high and low gain output options.

Aluminum Chassis

DAC-Z6 is made of aviation-grade CNC aluminum, creating a stable chassis structure. Enjoy a combination of modern visual appearance and classic build quality.

User Interface

The 3-inch LCD screen on DAC-Z6 displays the colourful and intuitive user interface. Navigate menu settings, audio source selection, enable VU meters, and display playback info.

VU Meters

Don’t just hear your music — enjoy it visually, too. Multiple VU meter designs elevate DAC-Z6 even higher, a feature and design polish not often seen at this price point.

On-Board Control

The knob on the front panel is multifunctional, controlling more than just volume adjustment. Press the knob to access input source switching, output selection, filter modes, VU meters, system language setup, firmware updates, and more.

Remote Control

The DAC-Z6 includes a remote control for easy adjustment of volume, input, and settings — even if you’re sitting on the other side of the room.

App Control

DAC-Z6 can even be controlled remotely using your smartphone with the EverSolo Controller app. Connect via Bluetooth and access the comprehensive settings menu, just like you would on the on-board display.

Specs

Model

EverSolo DAC-Z6

Display Screen

3-inch LCD Screen

Chassis

Aluminum alloy

DAC

ES 9068 x 2

Audio Processor

XMOS XU316

Op-amp Chip

RT 6863 x 10

Power Supply

Low noise switching power supply

Bluetooth Audio Input

Qualcomm QCC5125 Bluetooth module, BT5.0

Supports SBC/AAC/aptX/aptX LL/aptX HD/LDAC Bluetooth protocol

USB-B DAC Input

Compatible with Windows (7, 10), Mac, Android and iOS

Up to stereo DSD512, PCM 768KHz 32Bit and MQA

USB-C DAC Input

Compatible with Windows (7, 10), Mac, Android and IOS

Up to stereo DSD512, PCM 768KHz 32Bit, MQA

Optical Audio Input

Up to stereo PCM 192KHz 24Bit, DSD64 Dop and MQA

Coaxial Audio Input

Up to stereo PCM 192KHz 24Bit, DSD64 Dop and MQA

Analog Audio Output

Preamp output: XLR (balanced), RCA;

Headphone amp output: 6.35mm single-ended

USB Upgrade Port

USB2.0（only for firmware upgrade）

Control Methods

Remote control, mobile APP control and knob control

XLR Output

Output Level(Vrms)：4.1Vrms@0dBFS

THD+N@A-wt：0.000094%@1kHz（-120dB@1kHz）

THD+N@No-wt：0.000117%@1kHz（-118dB@1kHz）

Noise@No-wt ：<3uVrms

SNR)@No-wt：125@1kHz

frequency response：20Hz-20kHz(±0.15dB)

CROSSTALK：-123dB@1kHz

DNR)@No-wt：125dB@1kHz

RCA Output

Output Level(Vrms)：2.1Vrms@0dBFS

THD+N@A-wt：0.000116%@1kHz(-118dB@1kHz)

THD+N@No-wt：0.000138%@1kHz(-117dB@1kHz)

Noise@No-wt ：<2.5uVrms

SNR@No-wt：21dB@1kHz

frequency response：20Hz-20kHz(±0.15dB)

CROSSTALK：-118dB@1kHz

DNR@No-wt：121dB@1kHz

Headphone output (low gain mode)

Output Level(Vrms)：1.2Vrms@0dBFS

Max Power：： 45 mW@32Ω

THD+N@A-wt：0.00028%@1kHz(-111dB@1kHz)

THD+N@No-wt：0.00031%@1kHz(-110dB@1kHz)

Noise@No-wt ：<3.5uVrms

SNR)@No-wt：114dB@1kHz

frequency response：20Hz-20kHz(±0.15dB)

DNR)@No-wt：114dB@1kHz

Headphone output (high gain mode)

Output Level(Vrms)：2.8Vrms@0dBFS

Max Power： 26 mW@300Ω

THD+N@A-wt：0.00014%@1kHz(-117dB@1kHz)

THD+N@No-wt：0.00016%@1kHz(-116dB@1kHz)

Noise@No-wt ：<3.5uVrms

SNR)@No-wt：121dB@1kHz

frequency response：20Hz-20kHz(±0.15dB)

DNR)@No-wt：121dB@1kHz

Power Input

AC 110~240V 50/60Hz

Rated Power

9W

Dimensions

270mm(W) x 187mm(D) x 50mm(H)

10.6in(W) x 7.4in(D) x 2.0in(H)

In the Box

DAC-Z6, remote control, power cable, USB cable, product manual

Canadian Warranty

1-year
