L75ms

Integrated Music System

The JBL L75ms Music System caters to the enthusiast who seeks an easy way to listen to their music collection without sacrificing acoustic performance.

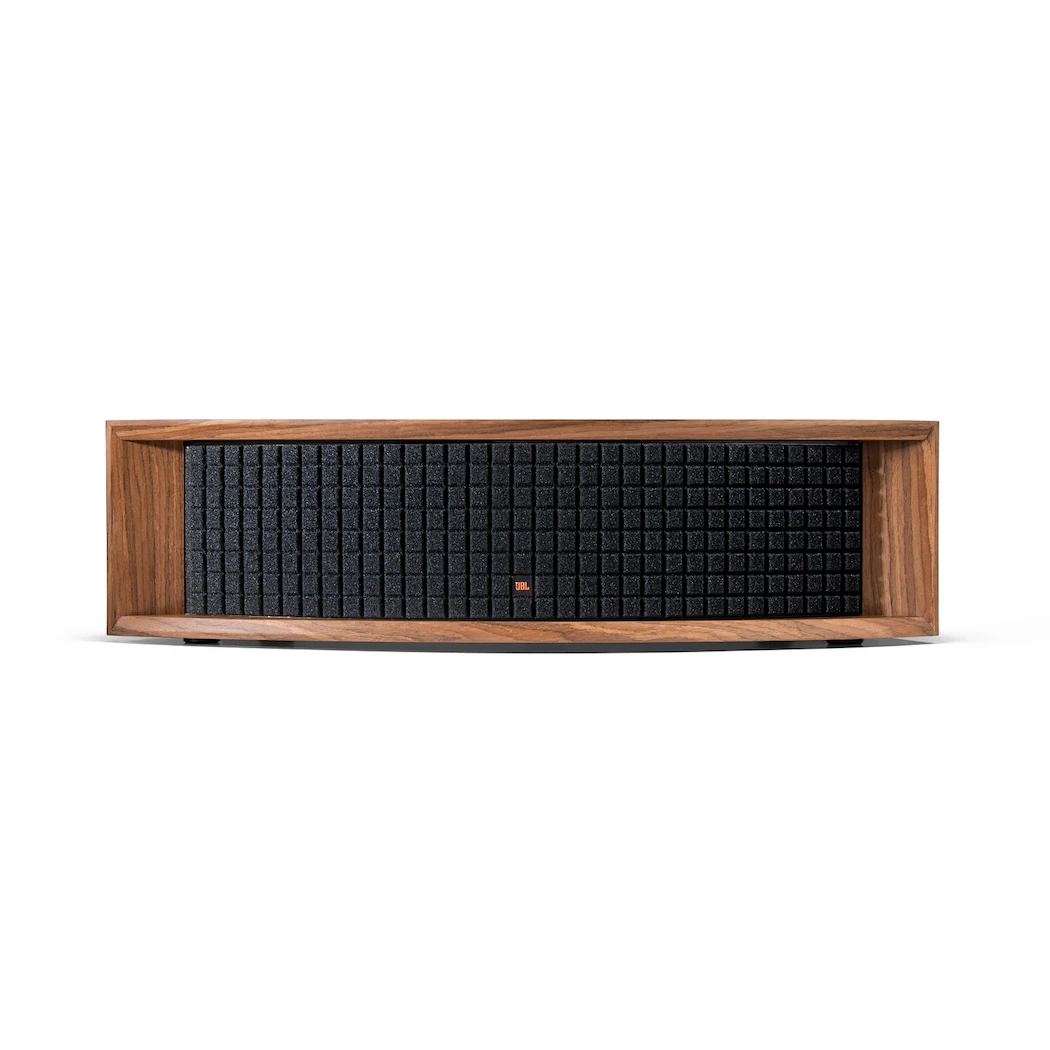

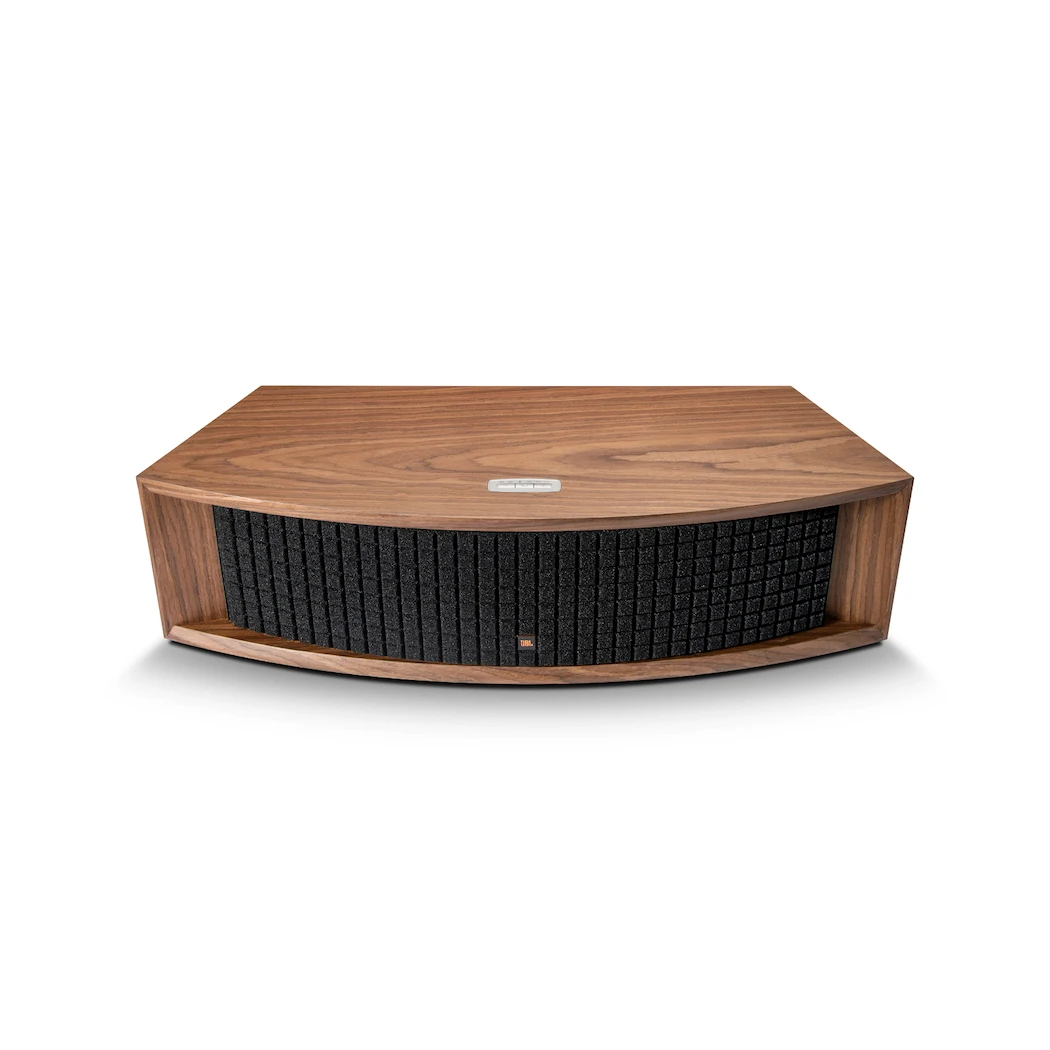

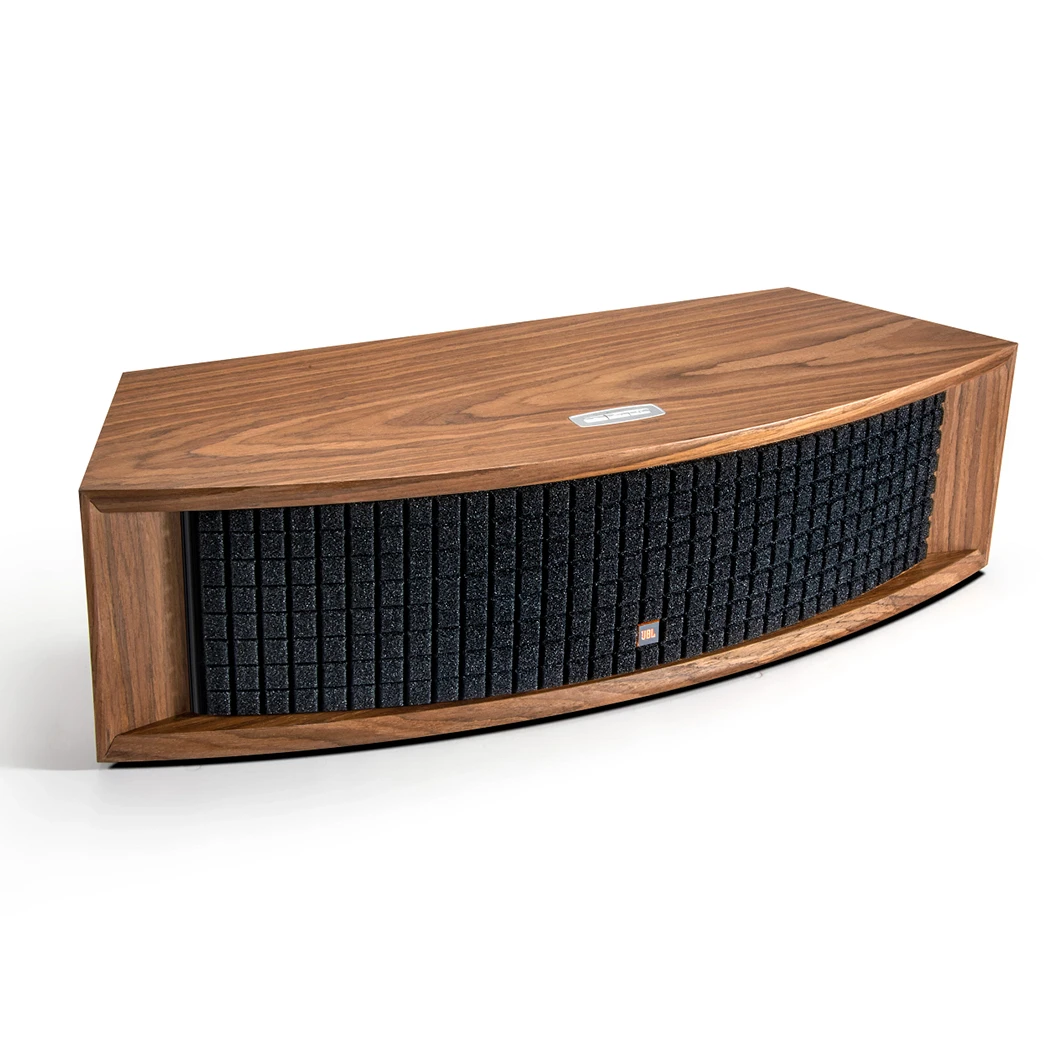

As a modern re-imagining of the all-in-one Hi-Fi system, the L75ms finds its design inspiration from the JBL Classic Series with which it shares its walnut wood veneer cabinet finish and black Quadrex foam grille.

Behind that retro appearance lies thoroughly modern acoustic technology including high-res audio capability and a wealth of wired and wireless connectivity.

For many modern listeners, streaming audio provides easy and convenient access to an entire world of music. The integrated streaming engine provides both wired and wireless network audio capabilities via Ethernet, Google Chromecast Built-in, Apple AirPlay 2, and Bluetooth audio. A 32-bit/192kHz high-resolution DAC ensures your favourite music comes across with the highest fidelity.

In addition to premium wireless audio, the L75ms provides a number of connections for physical sources including a 3.5mm analog input. For vinyl lovers, there is a moving magnet (MM) phono stage for connecting a turntable, and an HDMI ARC input for great movie and gaming sound when connected to your television.

For even more acoustic impact, there is a dedicated signal sensing subwoofer output for connecting to an external powered subwoofer. Everything is provided to create a truly great sound system without taking up a lot of space.

Designed and Engineered at the Harman Center of Acoustics Excellence in Northridge, California, the L75ms leverages JBL’s past 75 years of loudspeaker designs to deliver truly outstanding sound while outperforming most traditional component hi-fi systems in the process.

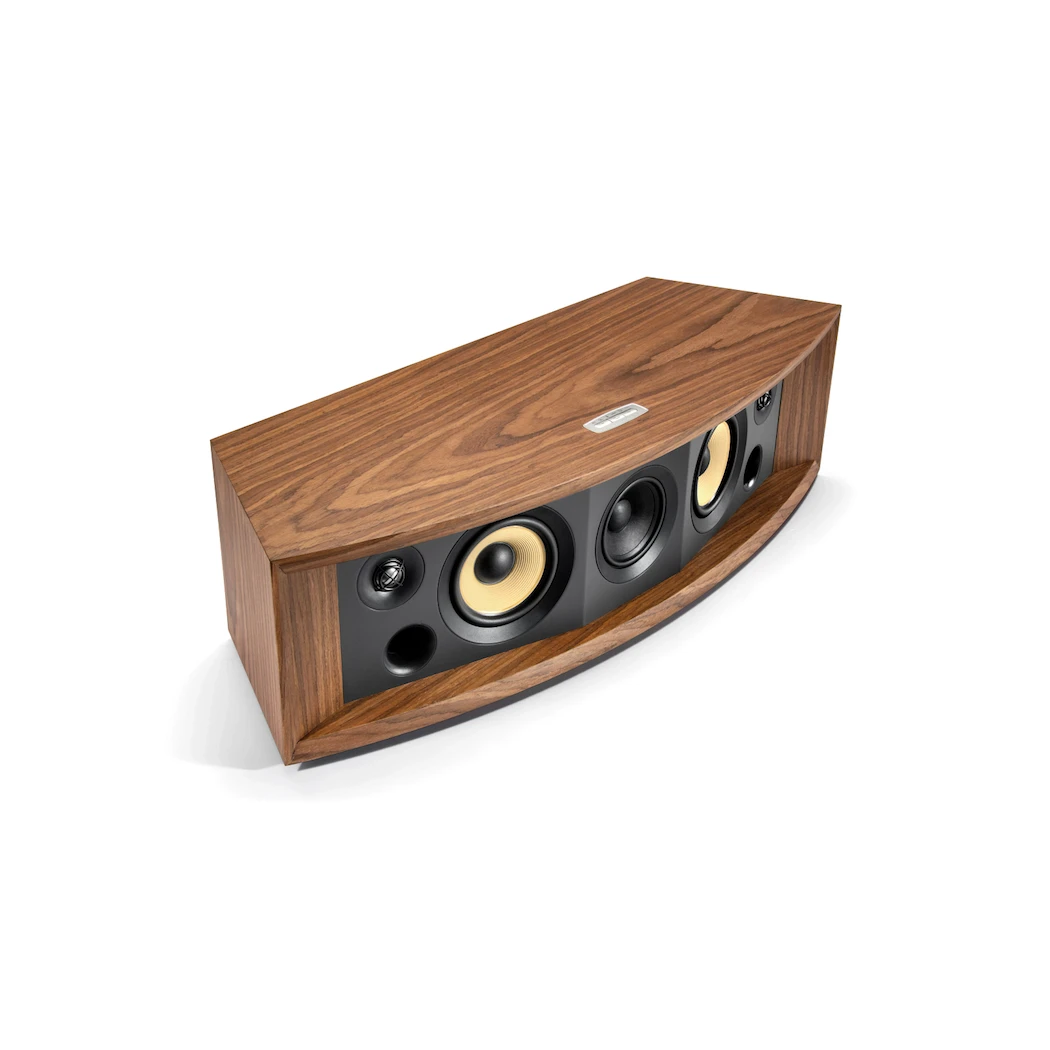

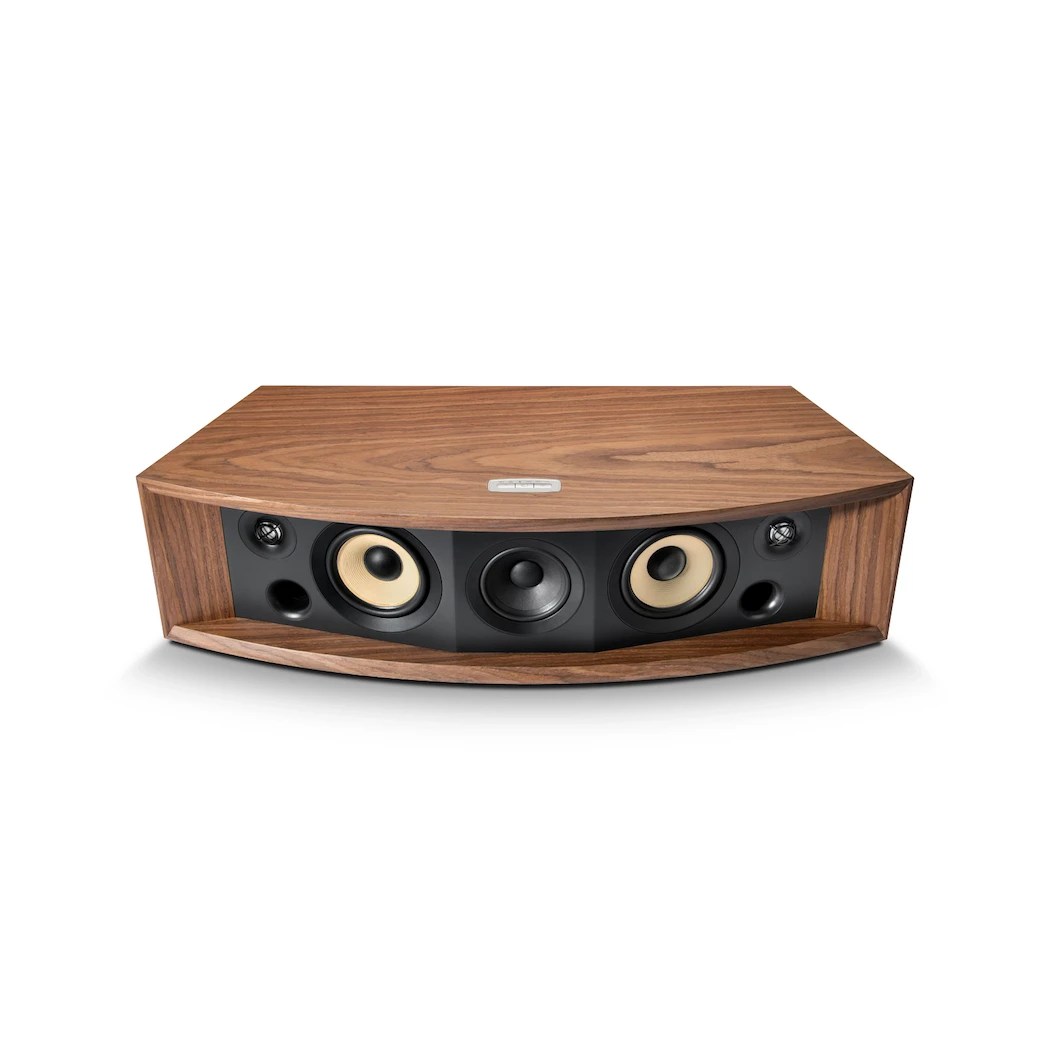

Behind the Quadrex foam grille and curved front panel shape, the L75ms contains a pair of 1-inch titanium dome tweeters with waveguides, a pair of 5.25-inch white cone woofers with dual front-firing ports, and a 4-inch central midrange driver — all arranged on a multi-angled baffle that brings to mind the “built-in acoustics” curved shapes of famous JBL heritage models.

Each of the five drivers has a dedicated channel of amplification and DSP tuning to deliver a remarkably wide soundstage across a large listening area.

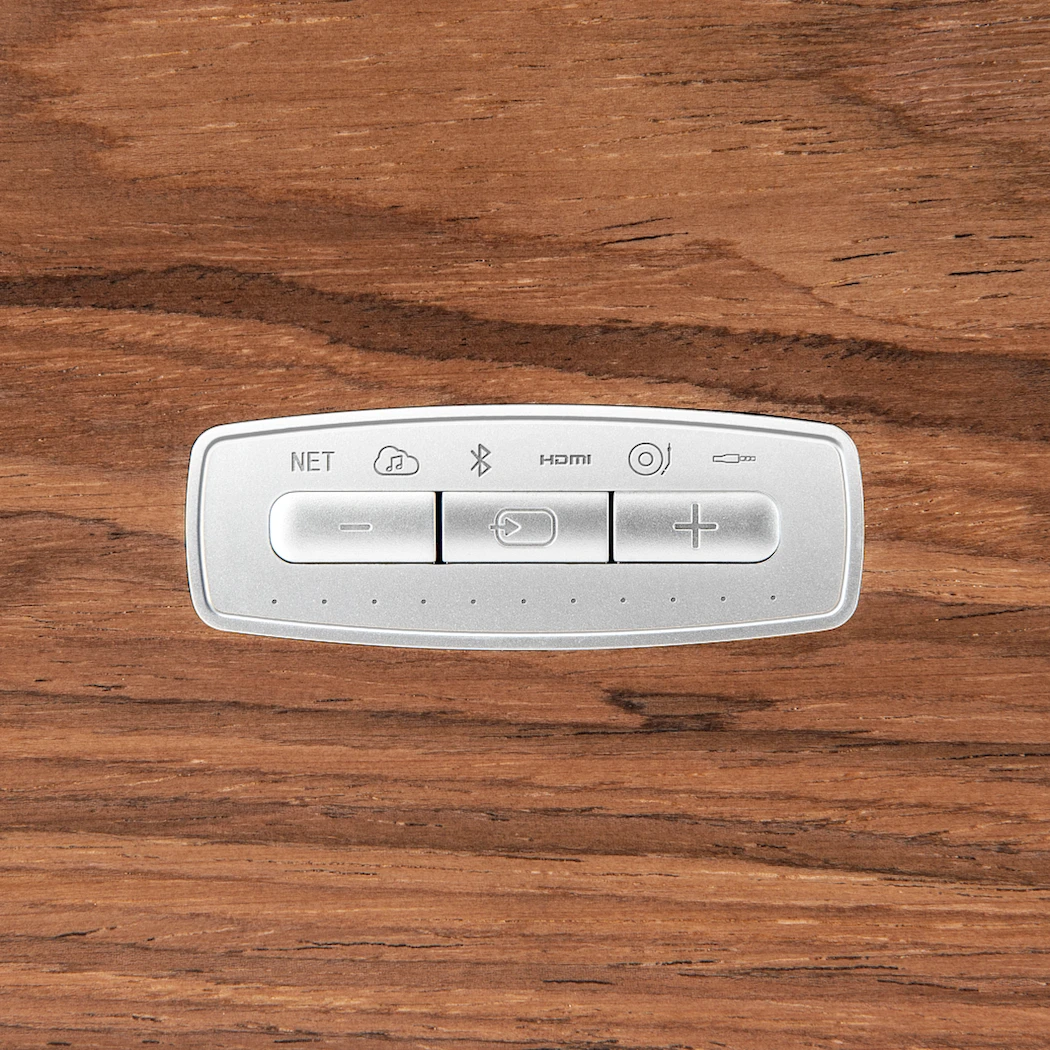

System operation of the L75ms is via the aluminum control panel on the top of the walnut enclosure, the included wireless remote control, or wireless connectivity to a Google Chromecast, Apple AirPlay 2, or Bluetooth enabled device

• High-performance integrated music system
• 5 Driver design: dual 5.25-inch woofers, dual 1-inch Aluminum tweeters, and a central 4-inch midrange driver
• 350W total system power
• Google Chromecast Built-in, Apple AirPlay 2, and Bluetooth wireless audio
• HDMI ARC, Moving Magnet phono, and 3.5mm auxiliary inputs
• Selectable Soundfield Expander and Bass Contour controls
• Satin walnut furniture-grade wood veneer finish
• Black Quadrex foam grille
• Wireless remote and MusicLife app control
• Unit dimensions: 8.5” H x 31.1” W x 11.3” D

Type

Streaming tabletop loudspeaker system

Low Frequency Drivers

Dual 5.25″ (130mm) Pure Pulp cone woofers

High Frequency Drivers

Dual 1” (25mm) Aluminum dome tweeters with waveguides

Midrange Driver

4” (100mm) Pure pulp cone midrange

Amplifier Power

125W RMS per woofer, 25W RMS per tweeter, 50W RMS for center (350W RMS total)

Sound Controls

Speaker placement compensation, selectable sound-field expander

Wireless Inputs

WiFi streaming, Bluetooth 4.2

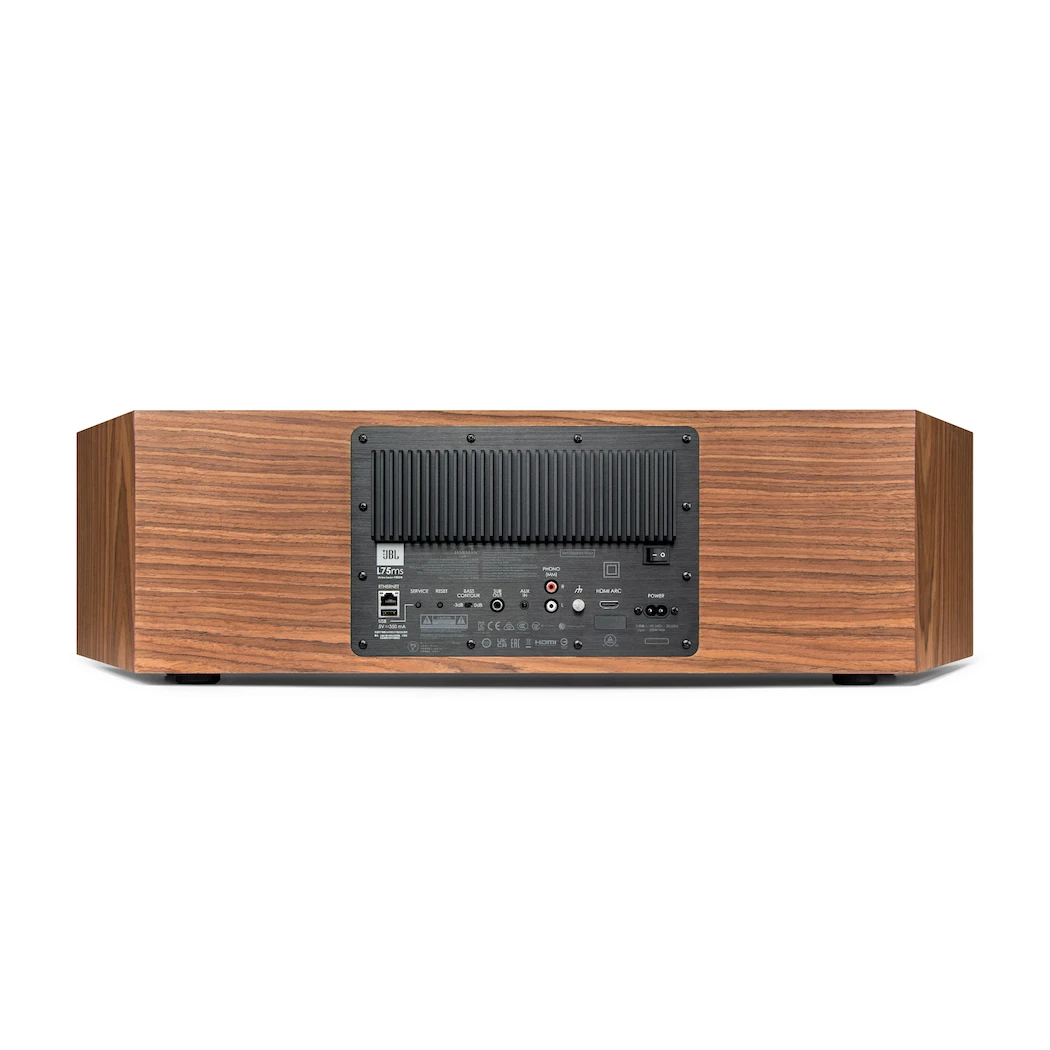

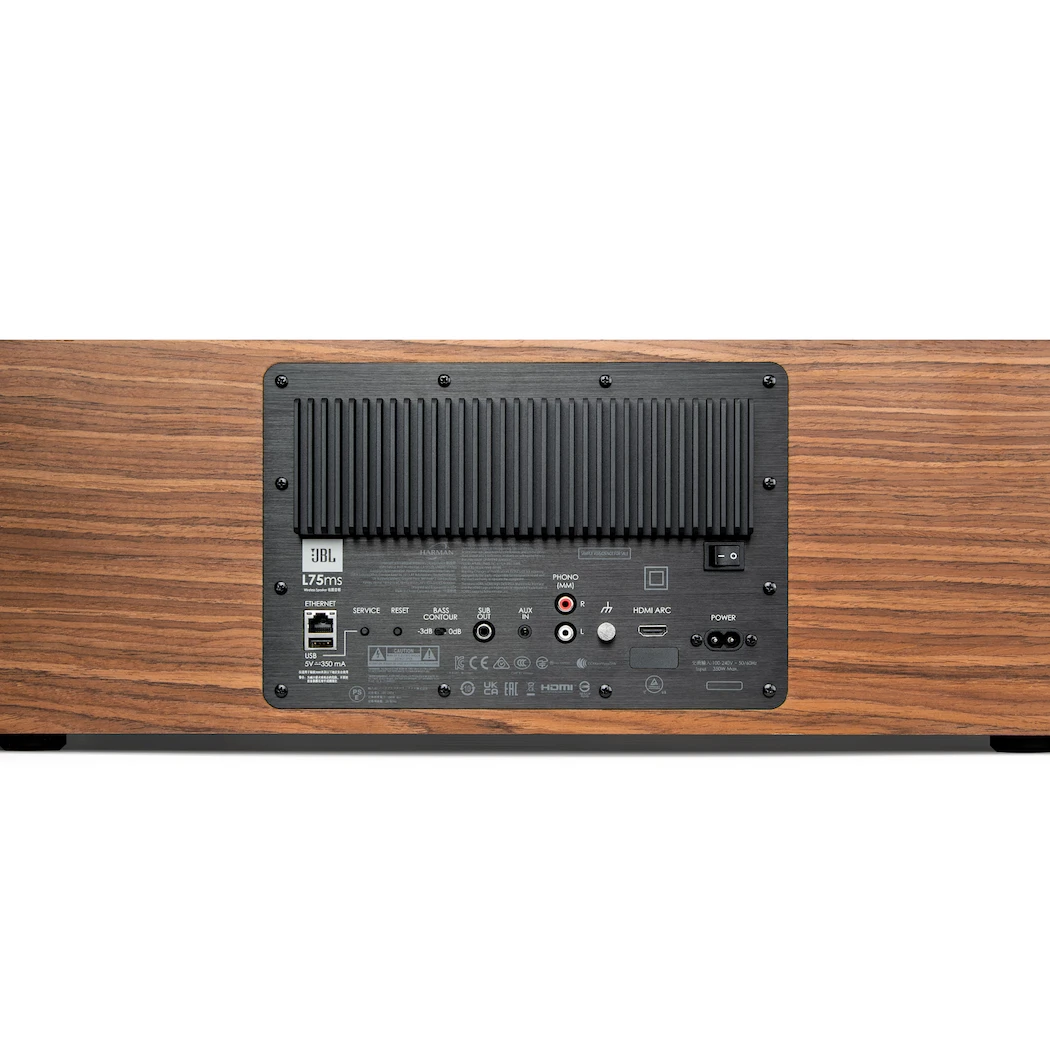

Wired Inputs

HDMI ARC, ethernet, phono (MM), 3.5mm AUX

Resolution

Up to 32-bit, 192 kHz

Frequency Response

45 Hz – 25 kHz (-6 dB)

Maximum SPL

106 dB @ 1m

Subwoofer Output

2V RMS with auto-sense/engage HPF

Enclosure

Front-ported tabletop in satin walnut furniture-grade wood veneer

Grille

Black foam Quadrex grille

Dimensions with grille

8.5” H x 31.1” W x 11.3” D (216mm x 790mm x 287mm)

Remote Control Type

BTLE

Product Weight (Each)

35 lbs. (15.9 kg)

Shipping Weight

44 lbs. (20.0 kg)

Warranty

5 Years
