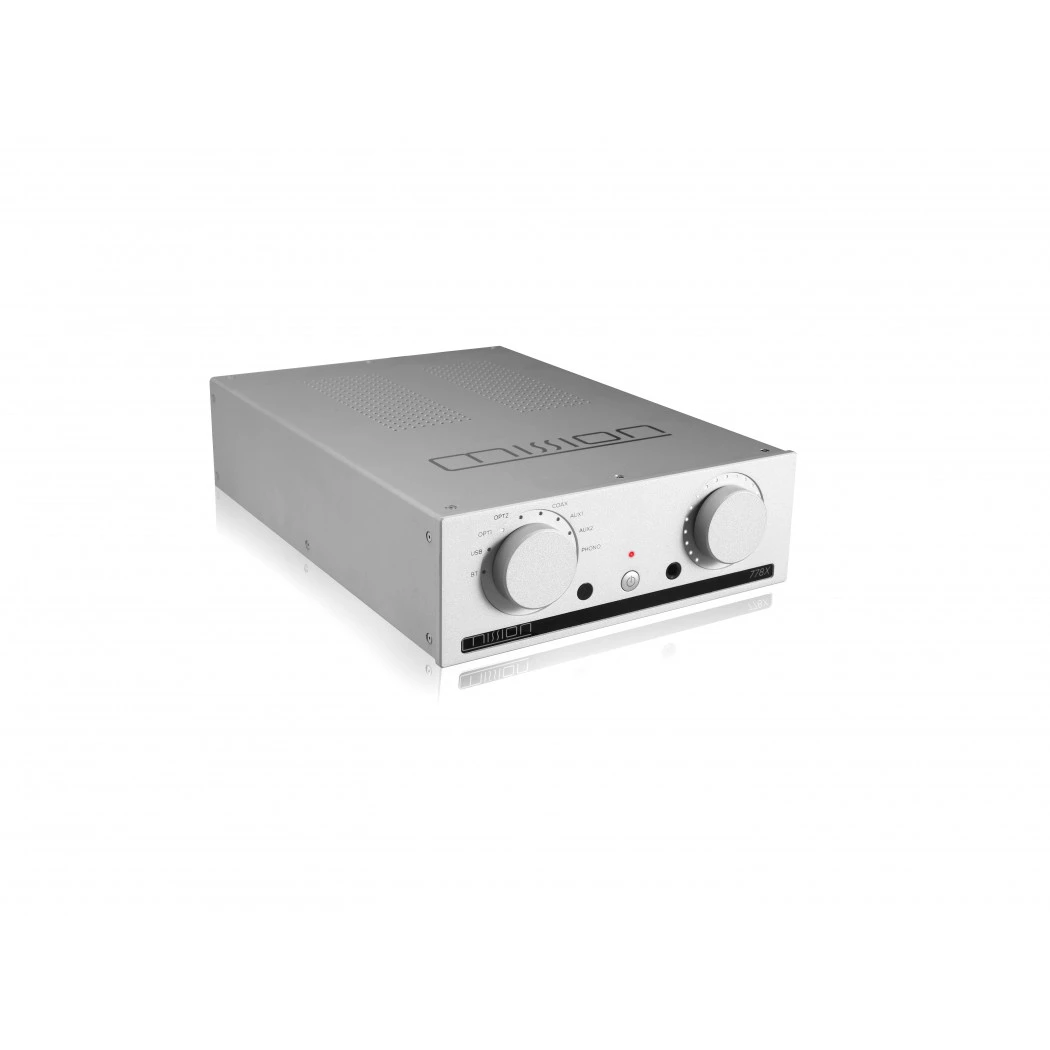

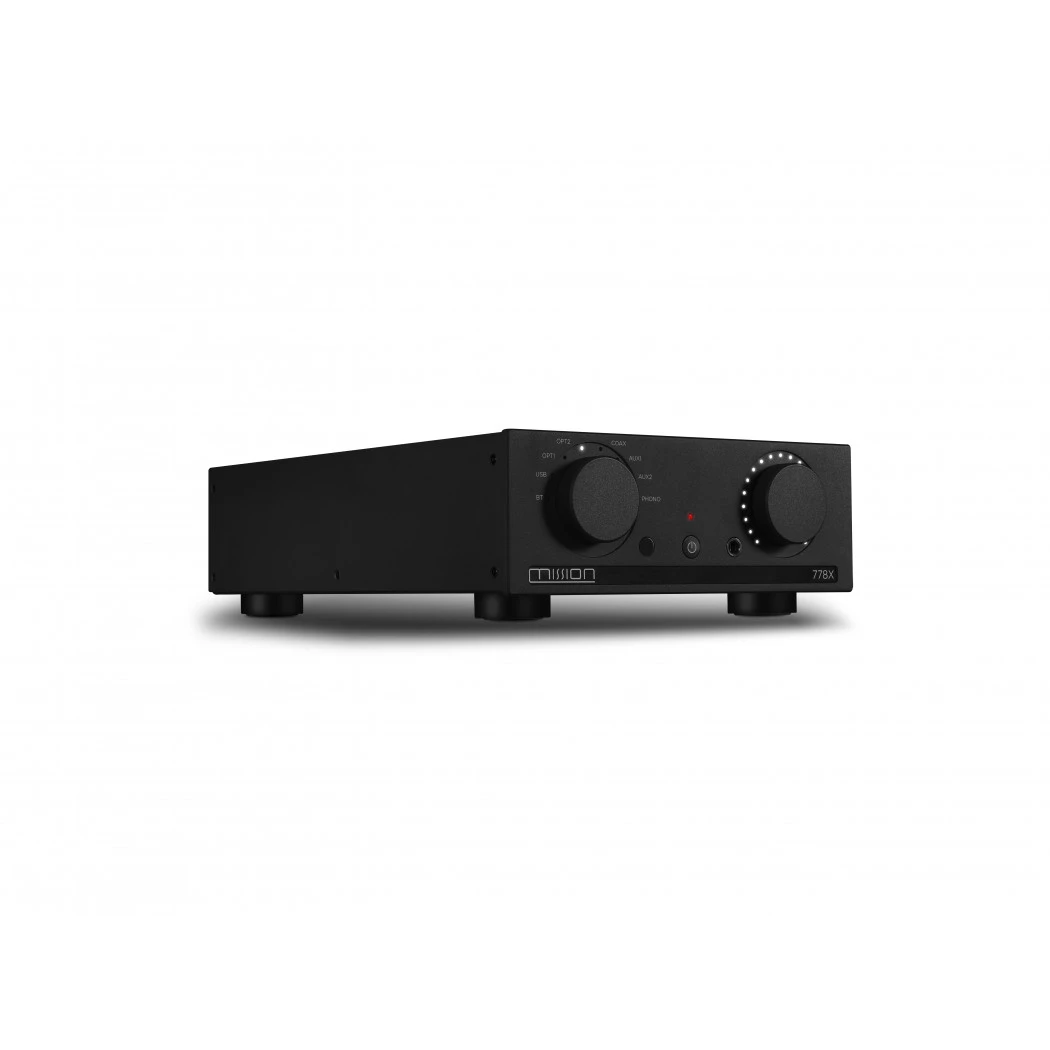

Mission 778X Integrated Amplifier
Original price was: $302.00.$96.99Current price is: $96.99.
- Get the Best for Less
- Buy with confidence, backed by quality.
- Quality and Affordability Combined
- Excellent customer service online in a timely manner
Inspired by the Mission 778 integrated amplifier from the 1980s, the new 778X is bang up to date in style and spec. It offers a plethora of inputs to accommodate almost any combination of audio equipment – analogue or digital.
Today’s Mission 778X maintains the influence of simplistic operation, large tractile controls, and a multitude of inputs. It’s a compact, ’80s inspired integrated amplifier that is fully equipped to meet the demands of modern music lovers, from vinyl fans to digital streamers. Modern twists, such as LED level indicators and all-encompassing connectivity options, make the 778X a truly contemporary integrated amplifier. Boasting a genuine 65 watts (@4 ohms) of power via an utterly modern and refined signal path, to standards akin to the exemplary standards to which Mission loudspeakers are developed.
Phono Ready
The phono stage is based around a JFET-based circuit with precise RIAA equalisation. It’s optimised for MM cartridges and as such, it’s a high-quality, low-noise input that eliminates any need for an additional phono pre-amp.
Complementing the typical RCA line inputs are digital and coax connection options and a built-in Bluetooth receiver with an aptX and AAC codec, meaning the 778X offers CD performance via Bluetooth wireless connection. The convenience of streaming music from smart devices, such as phones, tablets or PCs have never sounded so good!
DACs the Way
That’s not all in terms of digital music facilitation. The 778X is also equipped with a high-performance ESS ES9018K2M Reference chip with ESS Technology’s 32-bit HyperStream architecture and Time Domain Jitter Eliminator. In the world of digital music files, this means the 778X offers class-leading, ultra-low noise digital audio file compatibility, with a sampling rate of up to 384kHz (PCM) and DSD256!
Headphone Stage
Equal in performance to standalone headphone amplifiers, beyond the price- class of this complete system, the design offers high-speed output signal transition thanks to a high slew rate. The result is a dynamic, detailed and engaging performance with all manner of headphone types.
Labour of Love
The Mission 778X ’s all round performance is engaging, detailed and refined. Detail, timing and dynamics excel, regardless of source or medium. Designed for the modern-day music enthusiast with a nod to our heritage, the Mission 778X does not discriminate when it comes to expression and enjoyment of your music reproduction.
Main Features At A Glance:
- Digital-to-Analogue Converter, Stereo Amplifier
- Integrated Amplifier (45 watts @8 ohms, 65 watts @4 ohms)
- ESS Sabre32 ES9018K2M Reference Chip
- Ultra-low Noise Digital Audio File Compatibility (384kHz PCM, DSD256) • Bluetooth 5.0 (aptX / AAC) Support
- Dedicated High-performance, Low-noise MM Phono Stage
- Headphone AMP With High-speed Output Signal Transition
- USB Upgrade Support

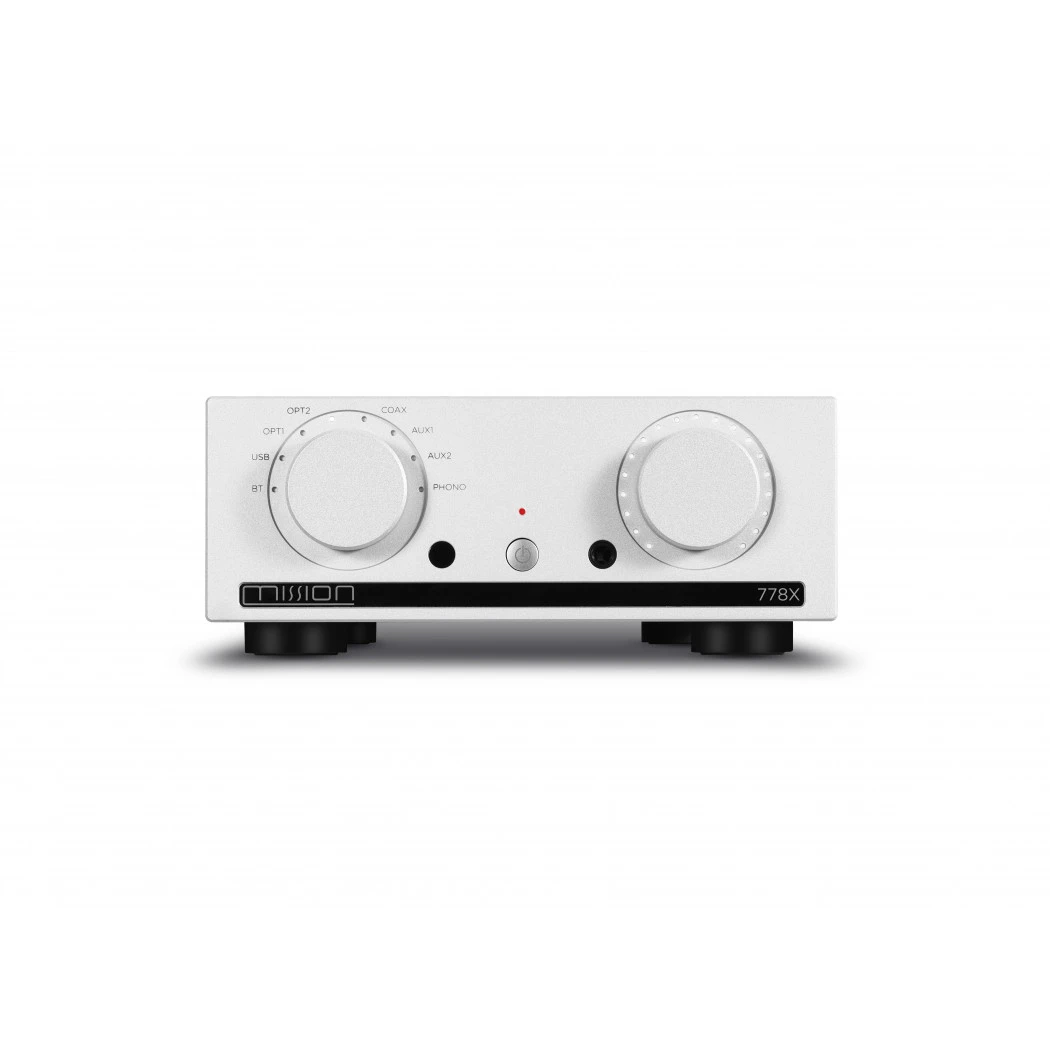

- Large Tactile Controls With LED Level Indicators
Technical Specifications:

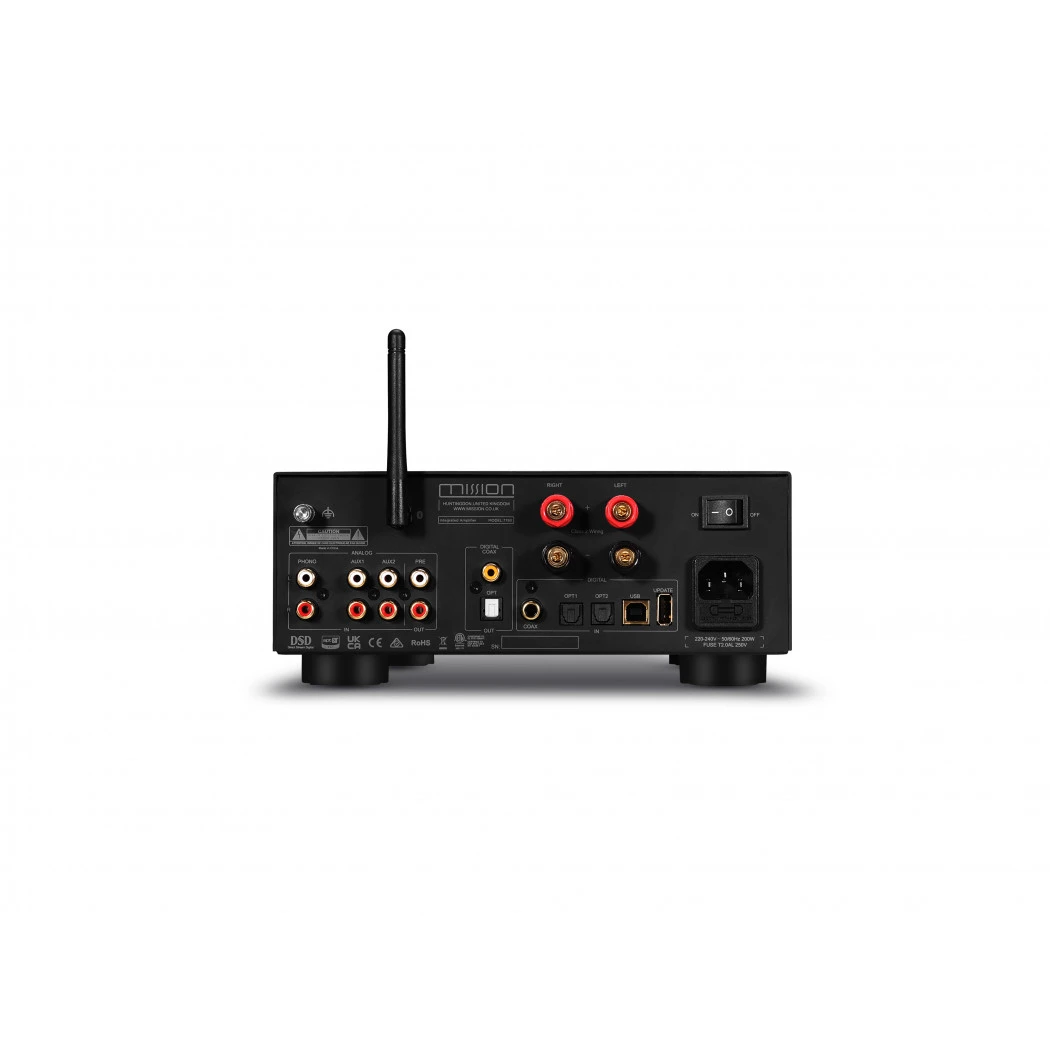

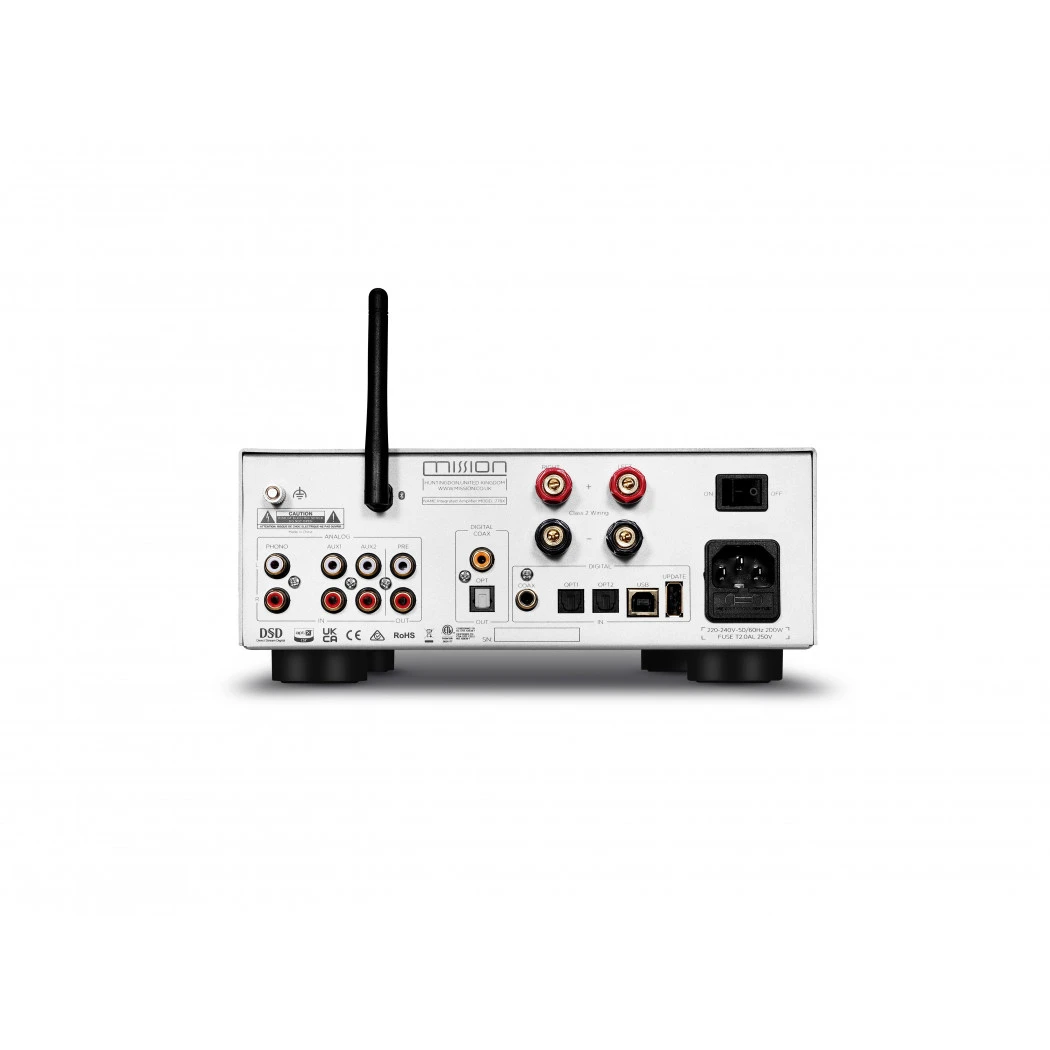

- Inputs: 1 x Coaxial, 2 x Toslink Optical, 1 x PC USB, 1 x Bluetooth (aptX/AAC), 2 x AUX,1 x RCA (Phono MM)
- Outputs: 1 x Coaxial, 1 x Toslink Optical, 1 x RCA (PRE Out)
- Sampling Frequency: Optical / Coaxial: 44.1kHz-192kHz; PC USB:44.1kHz-384kHz(PCM) / DSD64, DSD128, DSD256
- Preamplifier Section:
- Gain (max.)+0dB (Line), +47dB (Phono MM)
- Input Sensitivity: 540mV (Line, Volume = 0dB); 2.5mV (Phone MM, Volume = 0dB)
- Input Impedance: 10K (AUX); 47K//100pF (Phono MM)
- Total Harmonic Distortion (THD): <0.003%
- Frequency Response: (ref. 1kHz) 20Hz-20kHz (±0.1dB)
- PRE Output Level: 2.1Vrms (max.)
- PRE Output SNR: >110dB (A-weighted)
- DAC:
- D to A Converter: ESS Sabre32 ES9018K2M
- Resolution: 32-bit
- Max. Sampling Frequency: Optical/Coaxial: 192kHz; USB: PCM 384kHz / 11.2896MHz (DSD256)
- Total Harmonic Distortion: (THD)< 0.001% (1KHz @ 0dBFS)
- Output Level: (0dBFS, 1KHz) 2.1Vrms
- Power Amplifier:
- Rated Power Output: 2 x 45W (@8ohms); 2 x 65W (@ 4 ohms)
- Frequency Response: (ref. 1kHz) 20Hz-20KHz (± 0.5dB)
- Total Harmonic Distortion (THD): <0.005% (30W / 8 ohms)
- Input Sensitivity: 540mV (RCA AUX In); 2.5mV (Phono MM)
- Signal-to-Noise Ratio (SNR): >108dB (ref. 45W, A-weighted)
- Crosstalk @1K: >80dB (ref.1W)
- Headphone Amplifier:
- Total Harmonic Distortion (THD): < 0.01% (1kHz, 50mW )
- Output Impedance: 4.7 ohms
- Load impedance: 20-600 ohms
- General:
- Dimensions (W x H x D): 236 x 98 x 380.6 mm | 9.29 x 3.86 x 15.0 in
- Net Weight: 6.3 kg | 13.9 lb
- Standard Accessories: Power Cord, Remote Control, User Manual, Antenna
